Pip LFO:
Compact Analogue LFO & VCO
ALM048

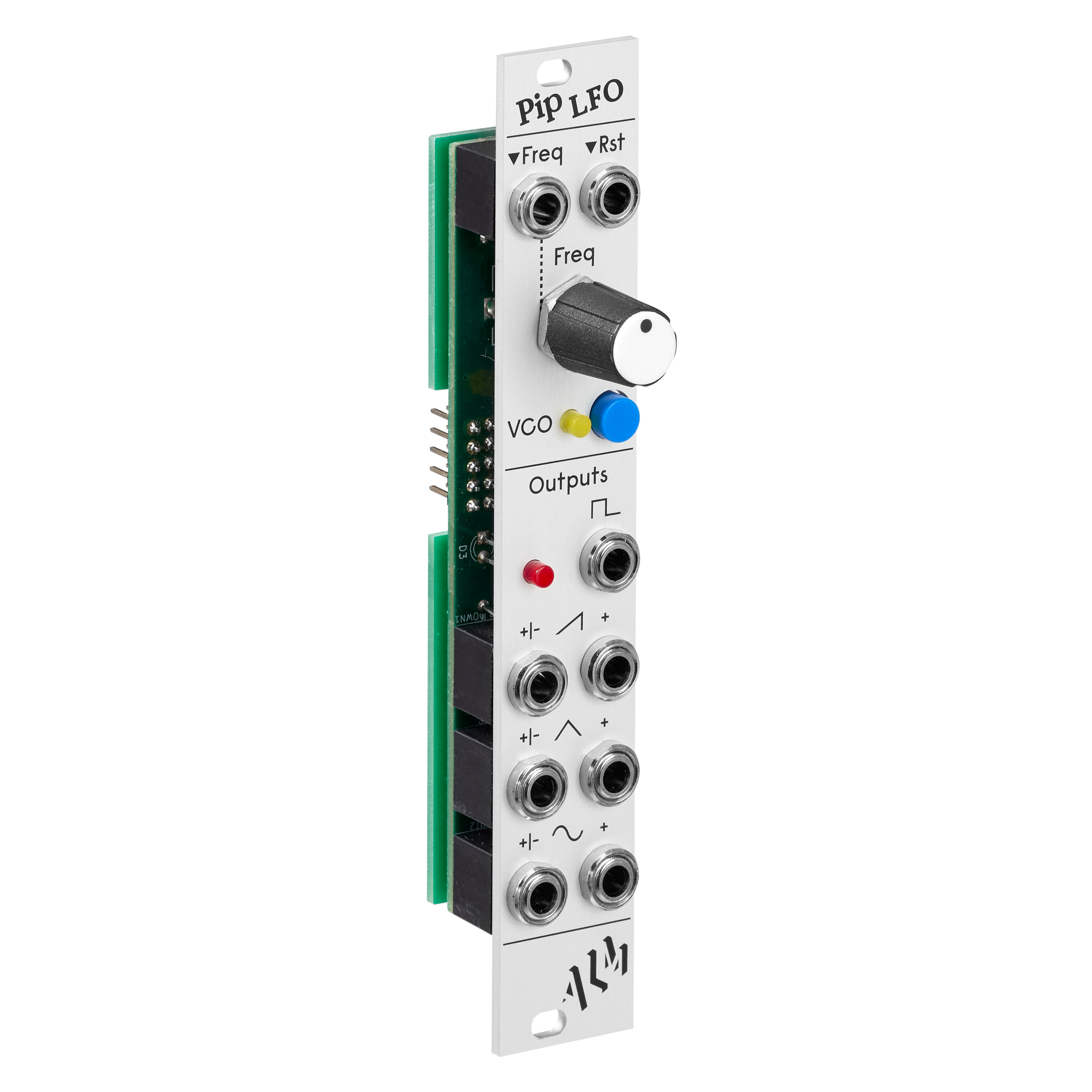

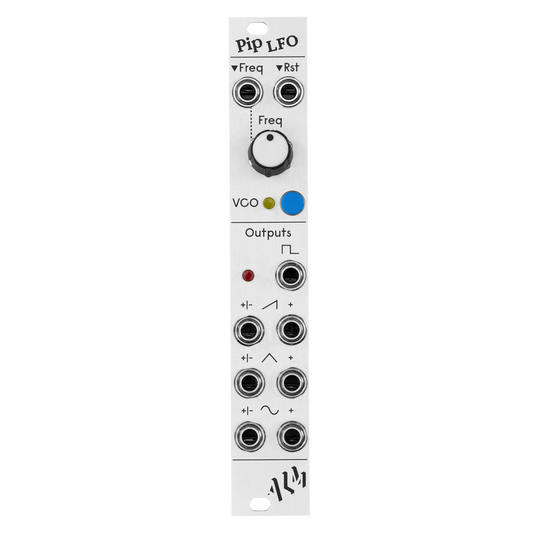

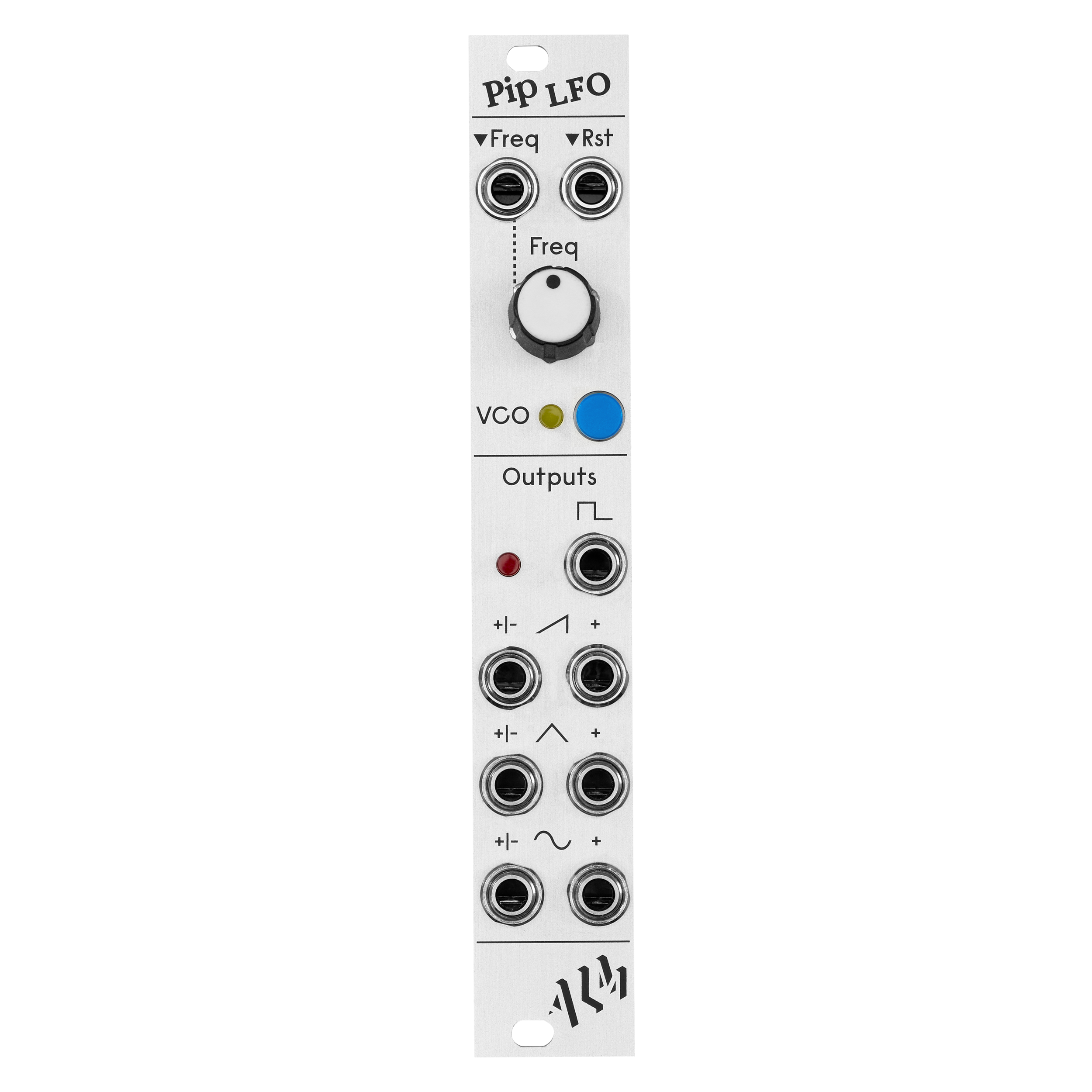

The ‘Pip LFO’ is a compact 4HP all analogue low frequency oscillator with a wide frequency range, voltage control, numerous outputs, reset input and a VCO mode.
LFO speed is set via a manual control and voltage control input. There is a unipolar square wave output along with both bipolar and uni-polar triangle, saw and sine waveform outputs. When VCO mode is activated, the frequency jumps to audio range and will track V/Oct for approx 5 octaves. A reset input allows the LFO waveform cycle to be reset and produces hard sync functionality in VCO mode.
Features
- Manual and CV control over LFO frequency.
- Frequency range from approx 0.01Hz to 20Khz+
- Square, Triangle, Saw and Sine simultaneous waveform outputs.
- Uni and Bipolar outputs.
- Audible frequency ‘VCO’ mode with V/Octave tracking.
- LED frequency indication.
- External reset/sync input.
- Skiff friendly with reverse power protection.
- 2 Year Warranty.
- Made in England.
Technical Specifications
- Size: 4HP
- Power: +12V 40mA / -12V 20mA
- Depth: 32mm (approx)
Manual

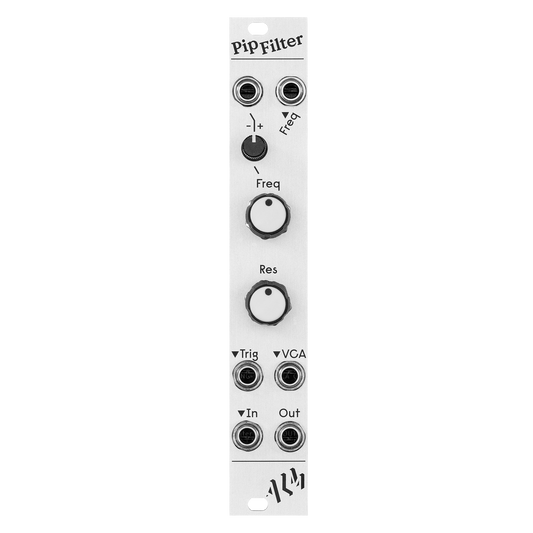

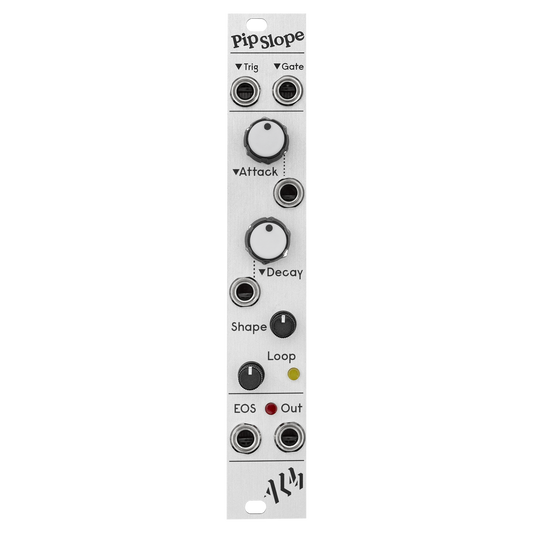

Pip LFO pairs well with Pip Filter, Pip Slope and anything with a CV input.
