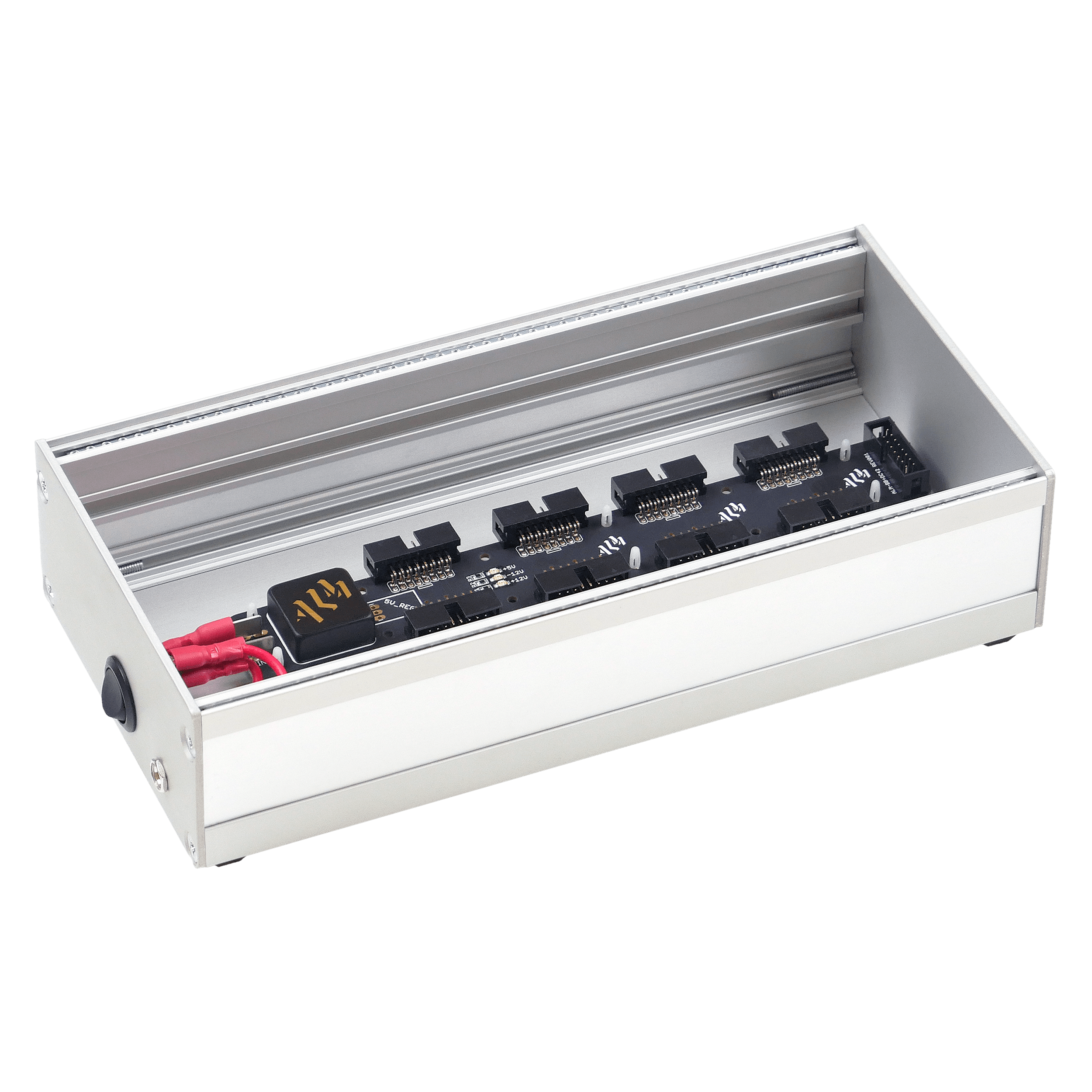

Eurorack Powered Cases
ALM Eurorack cases are available in a range of sizes all including an integrated powered bus boards.
The cases all feature anodised aluminium construction, an on/off switch, rubber feet, and high quality switched powered bus boards with numerous keyed headers and ample power capacity.
These are simple and compact Eurorack cases, perfect for small, focused systems, taking along on travels, or as a tabletop addition to a larger setup.
Cases are available in 4 sizes; 3U 84HP / 6U 84HP / 9U 84HP / 3U 52HP / 6U 52HP sizes. They all offer at least 1 Amp on both the -12V and +12V rails per bus board.
Great modern cases

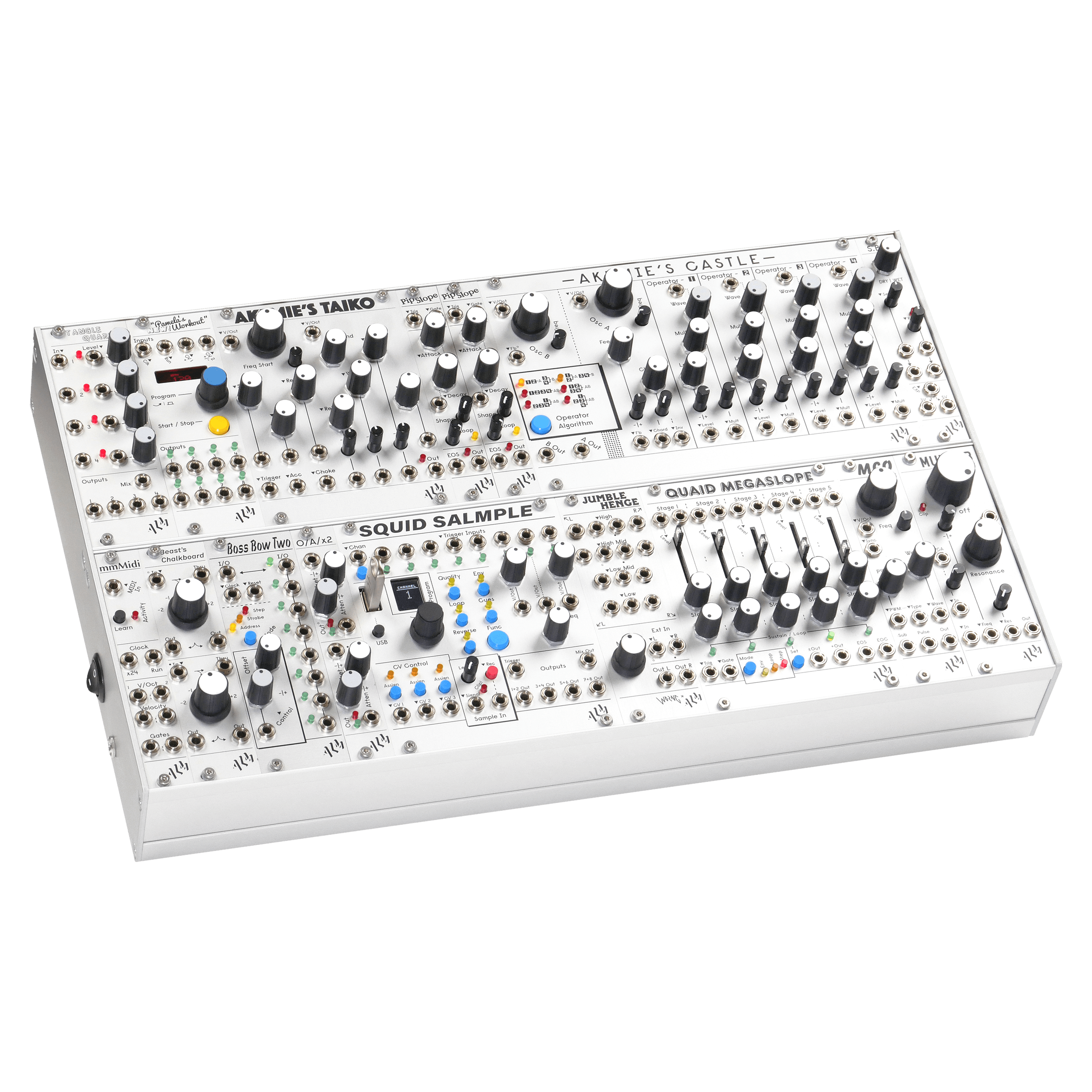

The ALM powered Eurorack case was originally designed for the System Coupe. Wider interest has seen it evolve into a range of different sized cases being made available by themselves.A fixed solid bus board provides quality ample power and plentiful keyed power connectors. The shielded DC/DC power converter is low noise and includes overload and short circuit protection. Fixed, quality mounting rails are used over sometimes frustrating sliding nuts. The case has a great looking all anodised aluminium construction that is both strong and light.
The case proportions are designed to look great on a table or desk (not too deep, just enough) and also be easy to fit in a bag and transport.

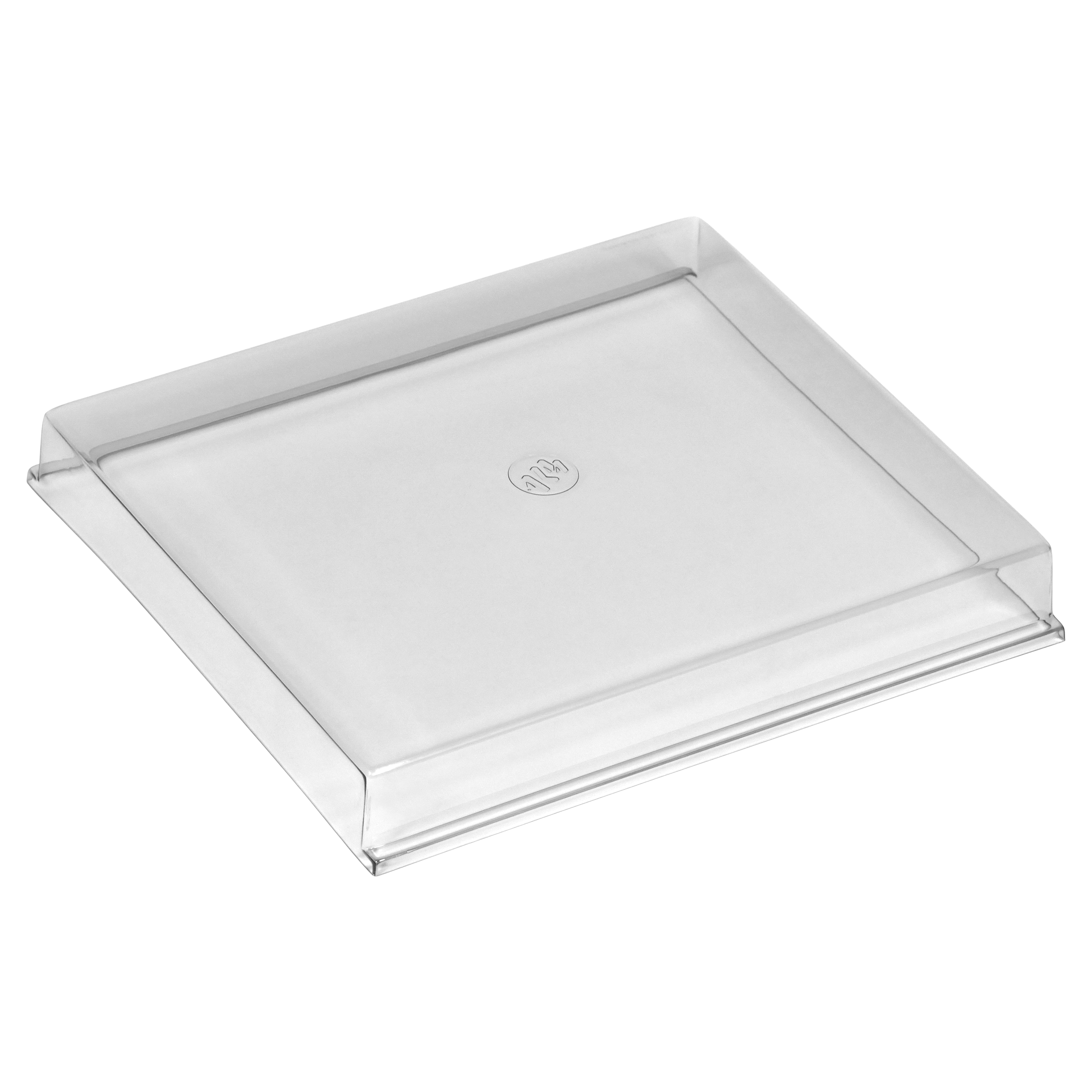

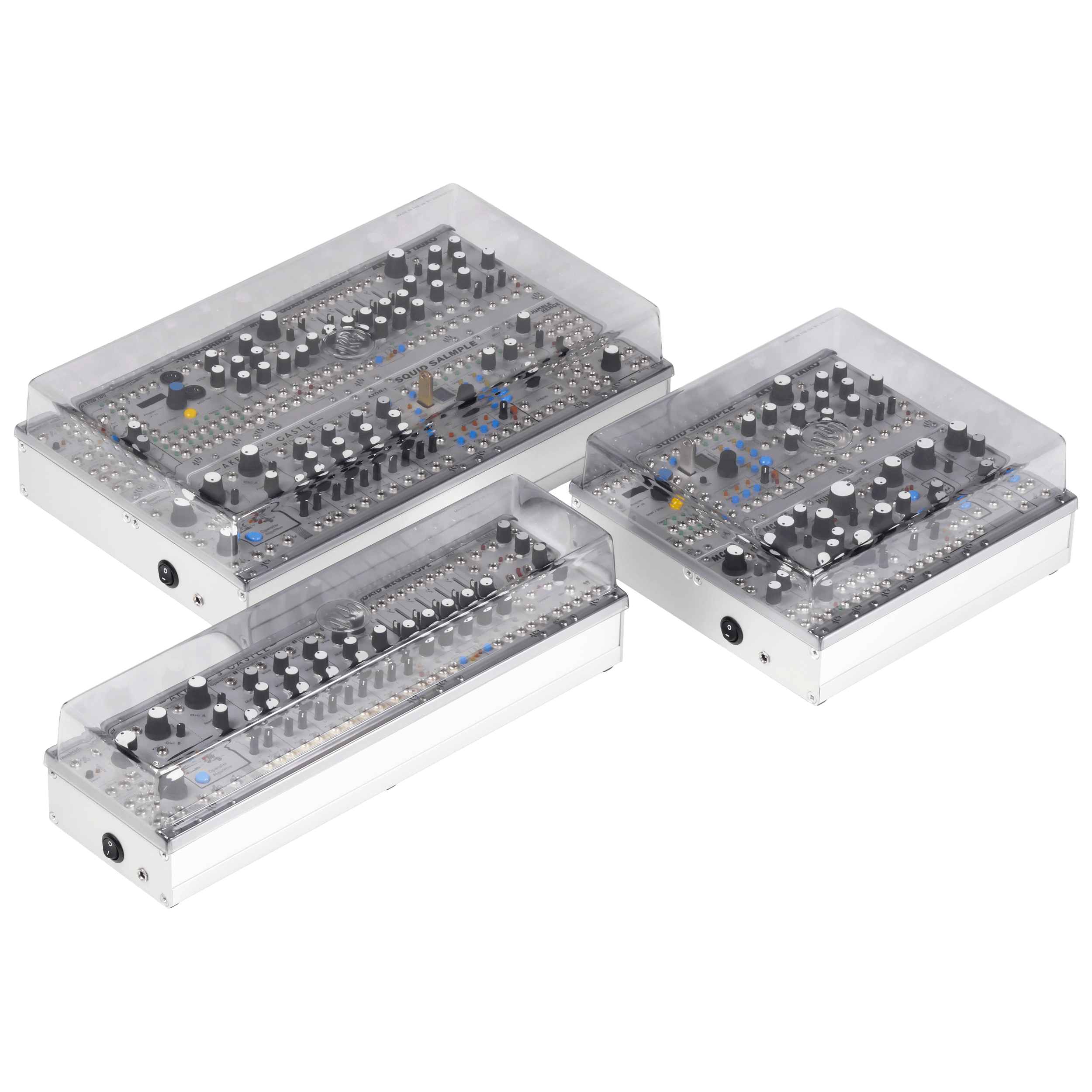

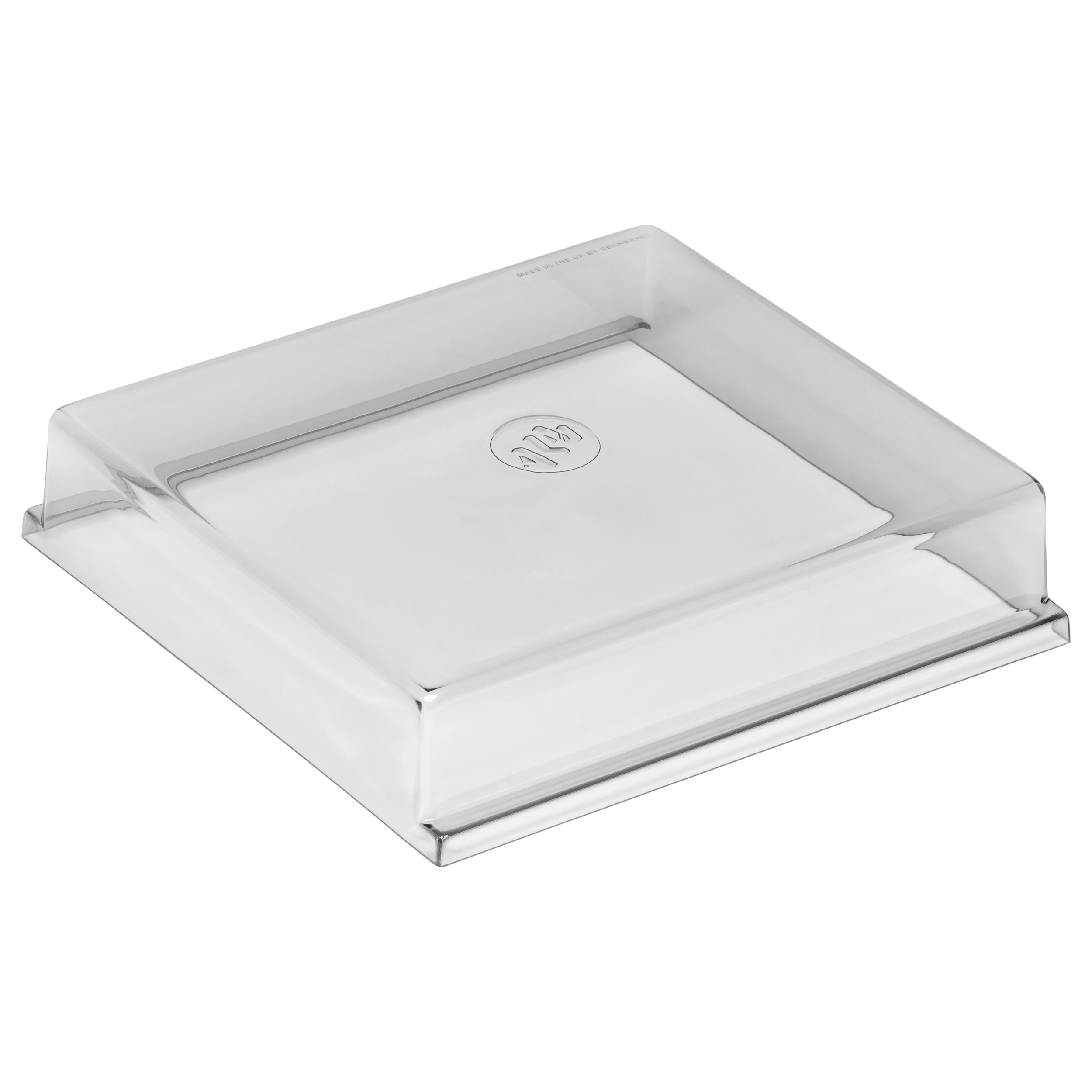

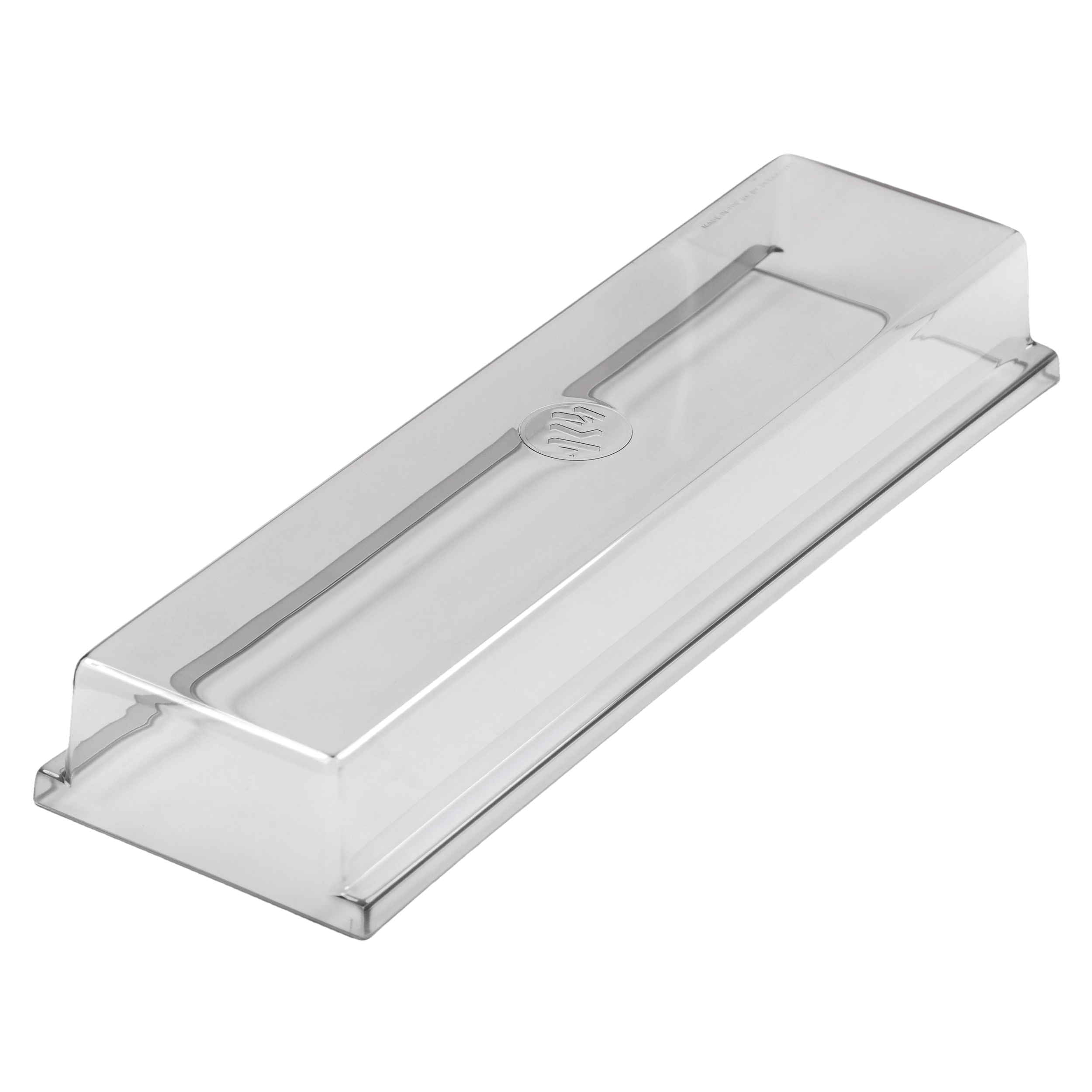

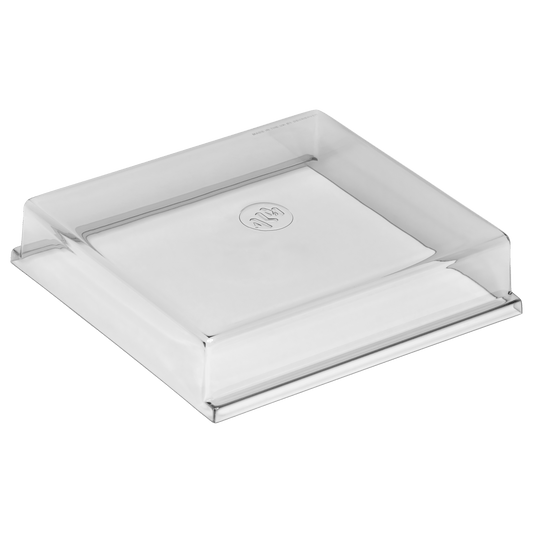

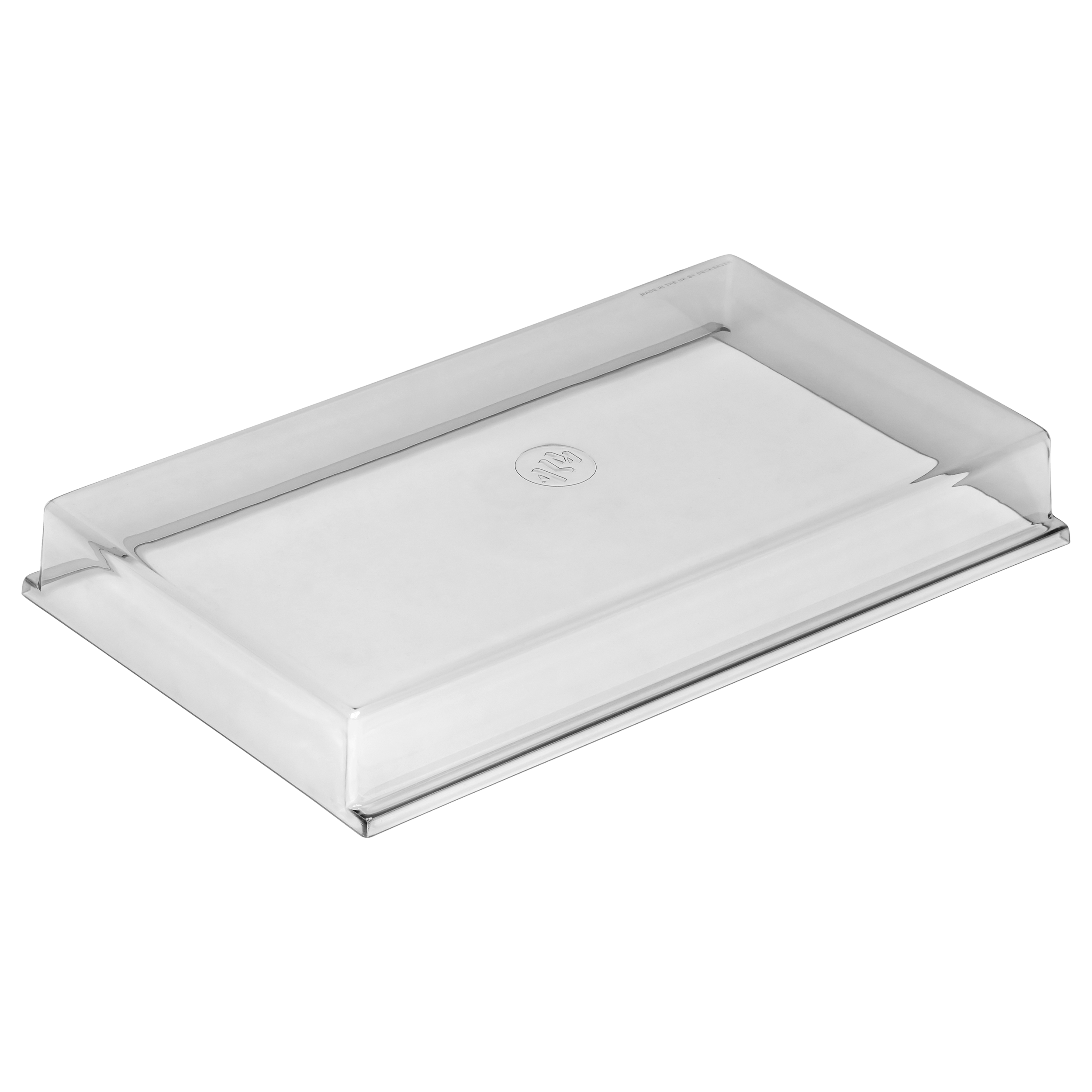

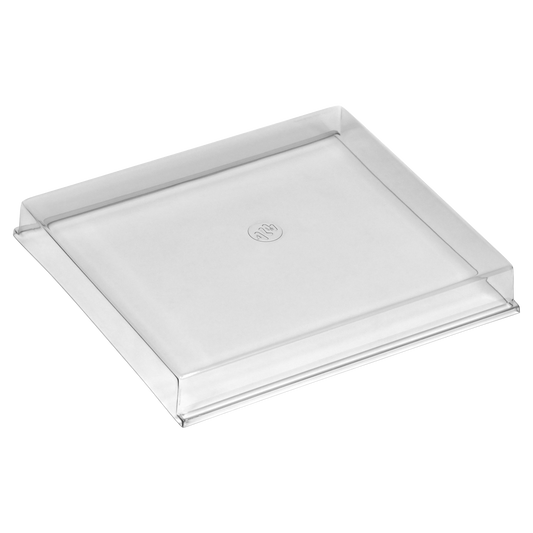

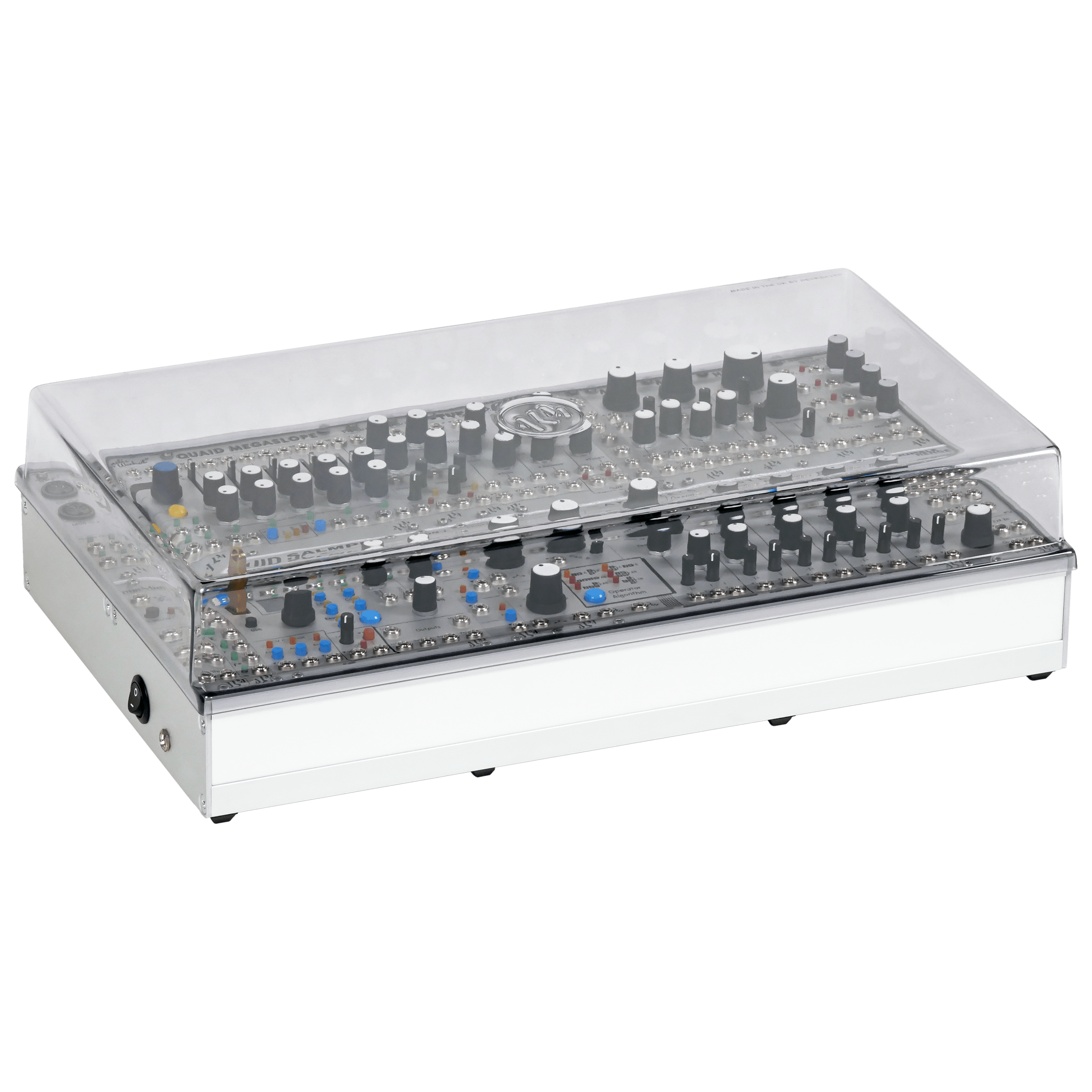

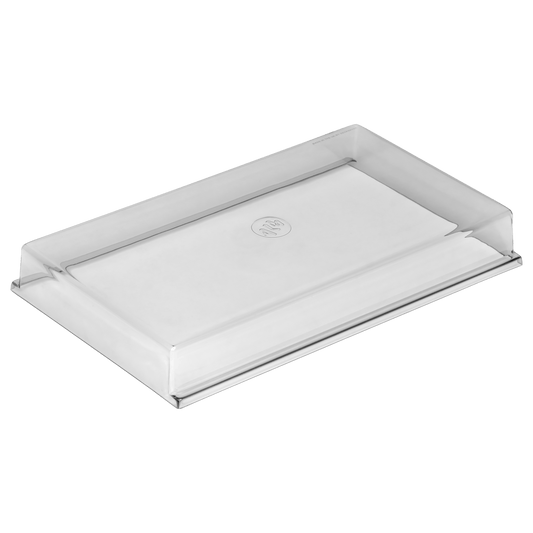

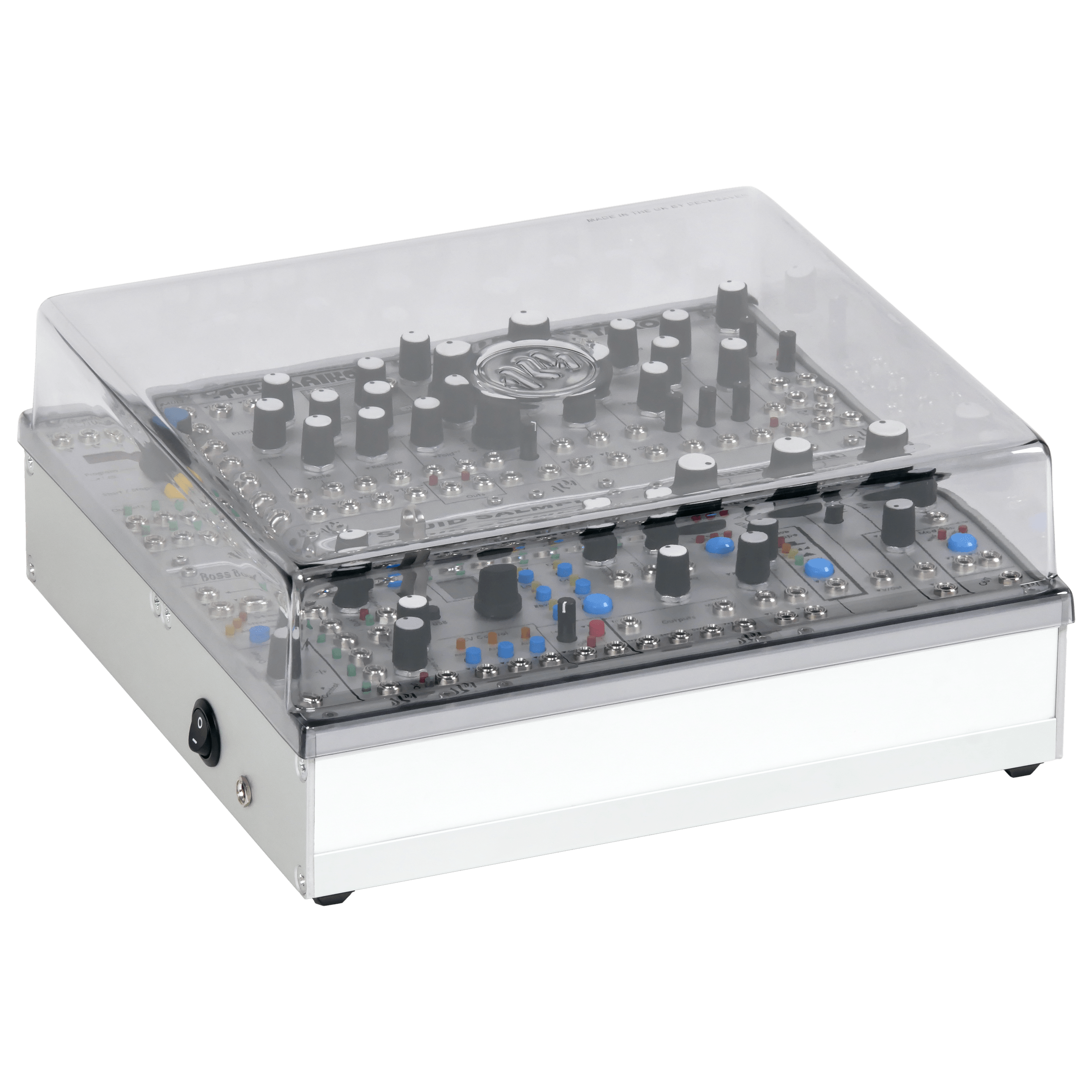

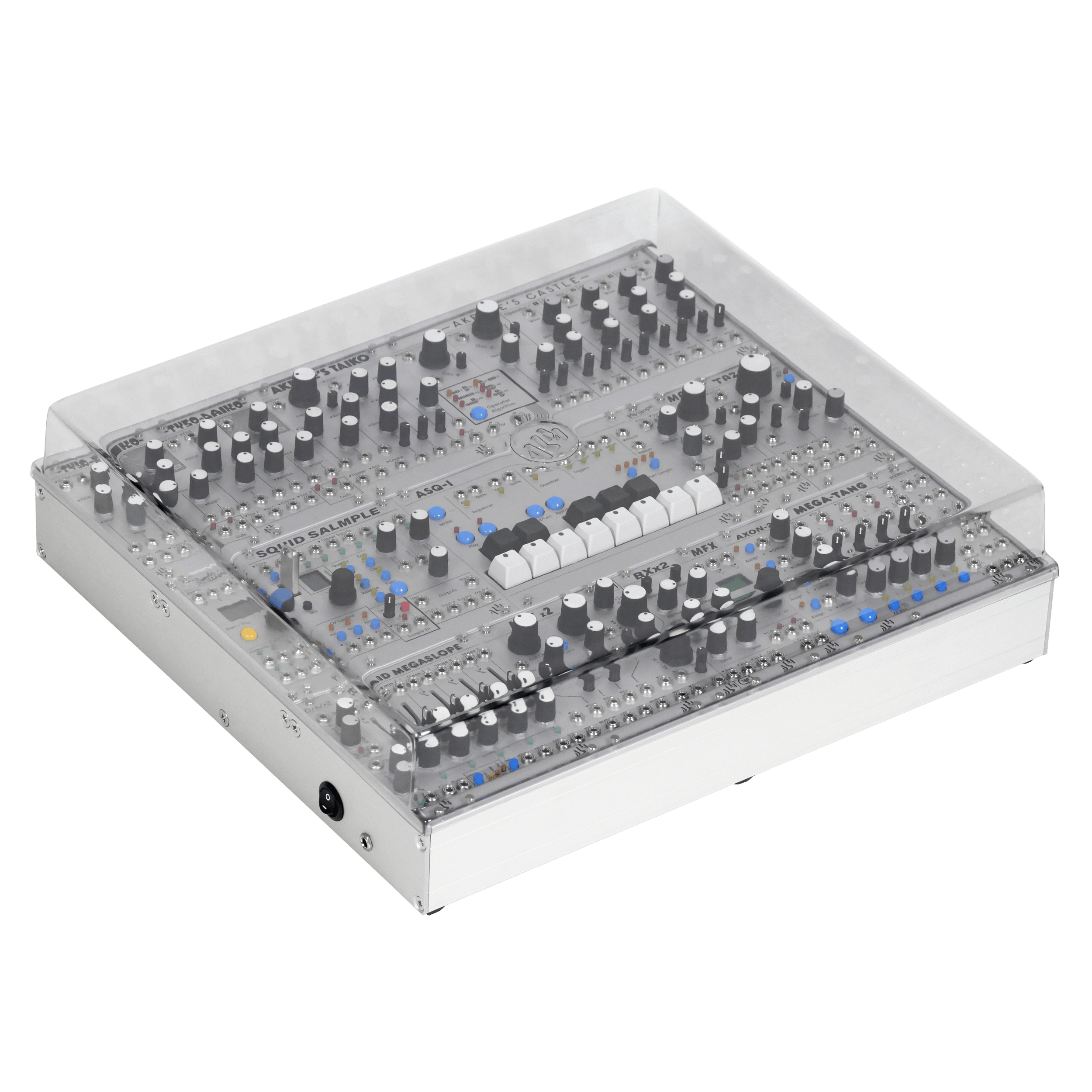

Decksaver case covers are available currently for the 3U/84HP, 6U/52HP, 6U/84HP and 9U/84HP cases.
Common Features
- Self assembled aluminium lightweight cases with integrated switched power busses.
- At least 1Amp per -/+ 12V rail per row with quoted 100mV ripple noise at max load. No 5V rail.
- Overload & Short Circuit protection.
- Support modules up to 42mm depth (approx 2 stacked pcbs). All ALM modules fit.

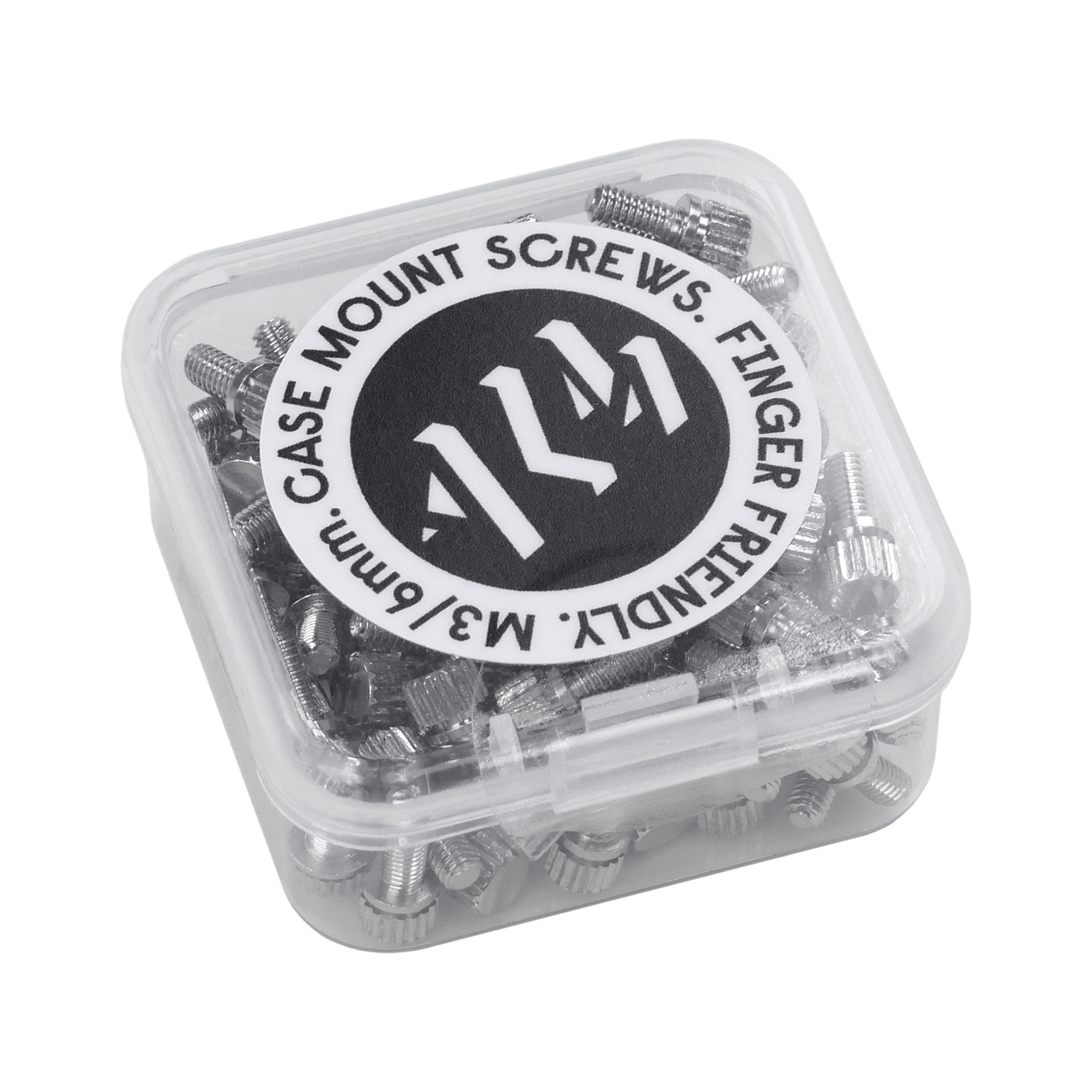

- M3 threaded fixed mounting strips (no sliding nuts!).

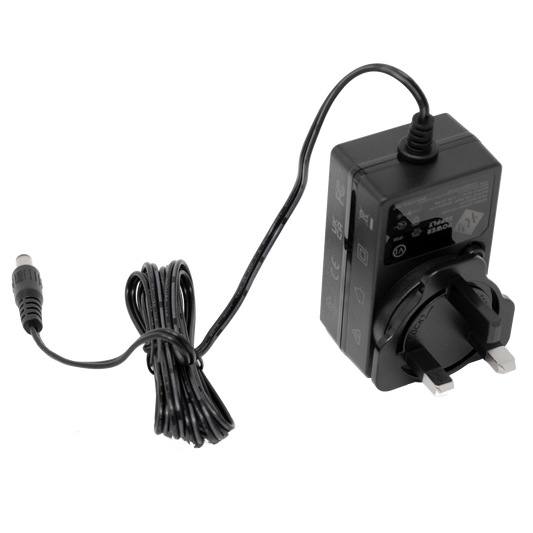

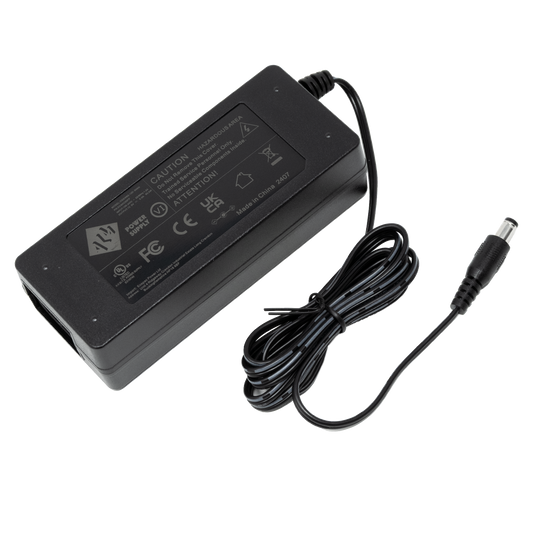

- Includes 12v external DC/DC power 'brick' with center positive 2.1mm barrel and at least 2 or 4 Amp rating (depending on model).

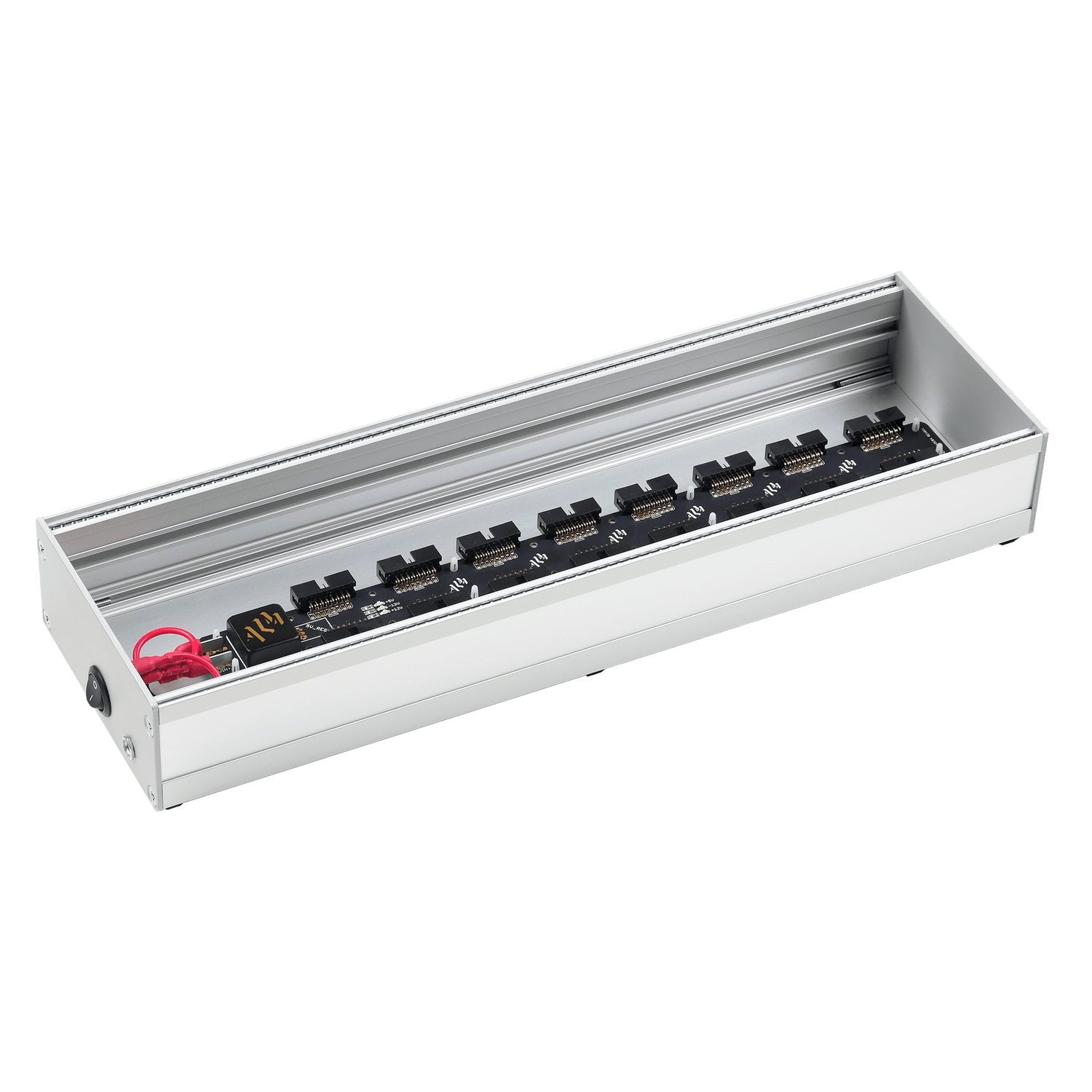

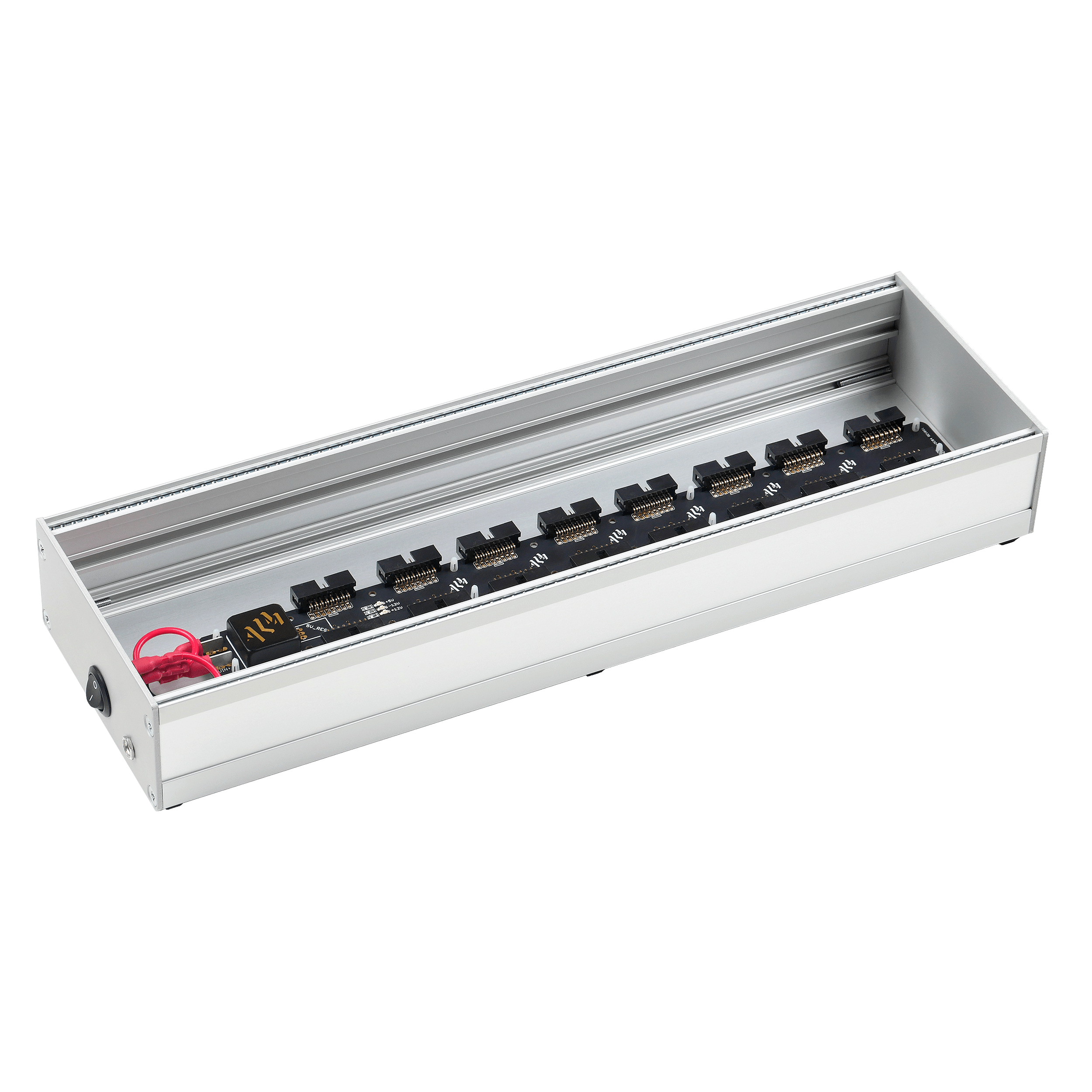

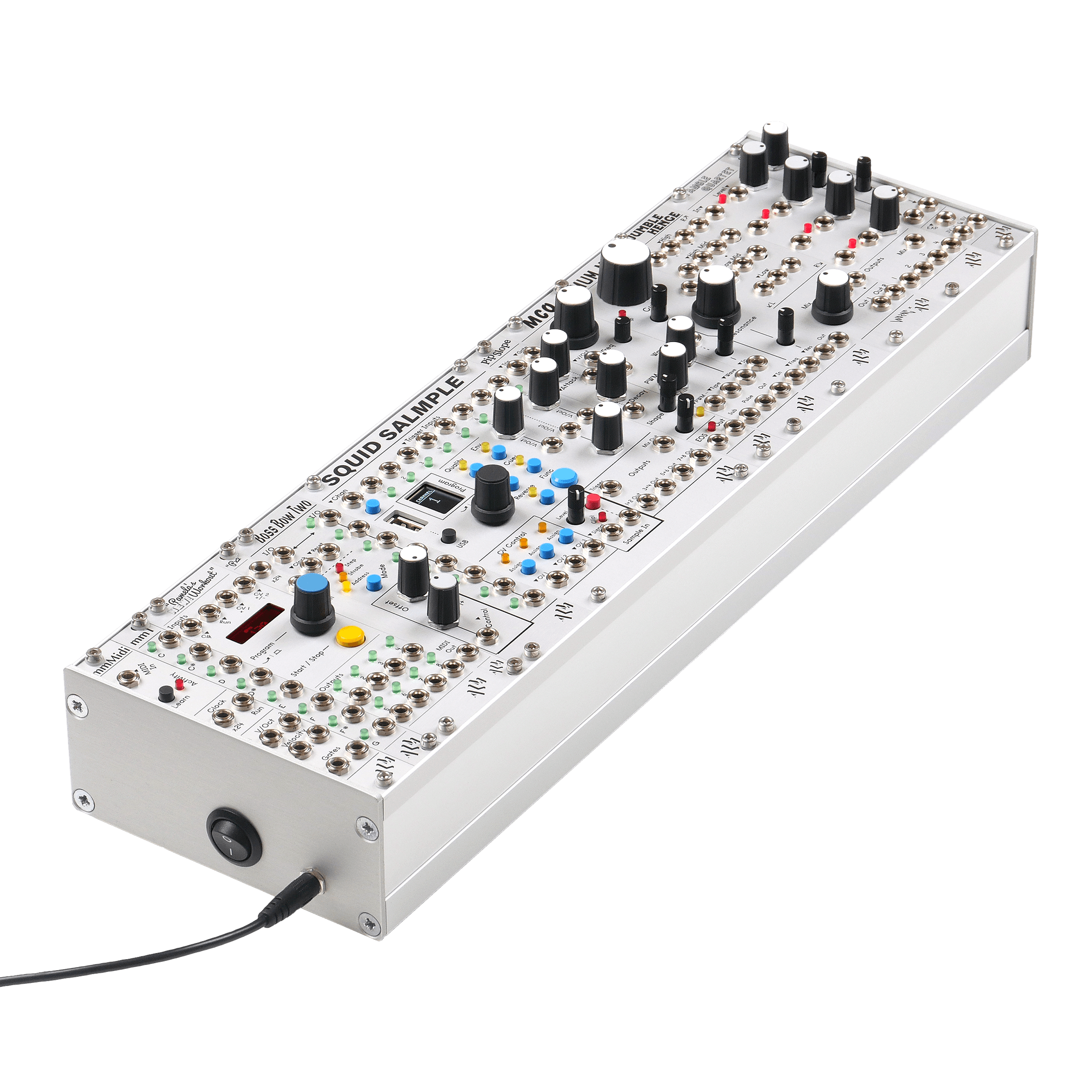

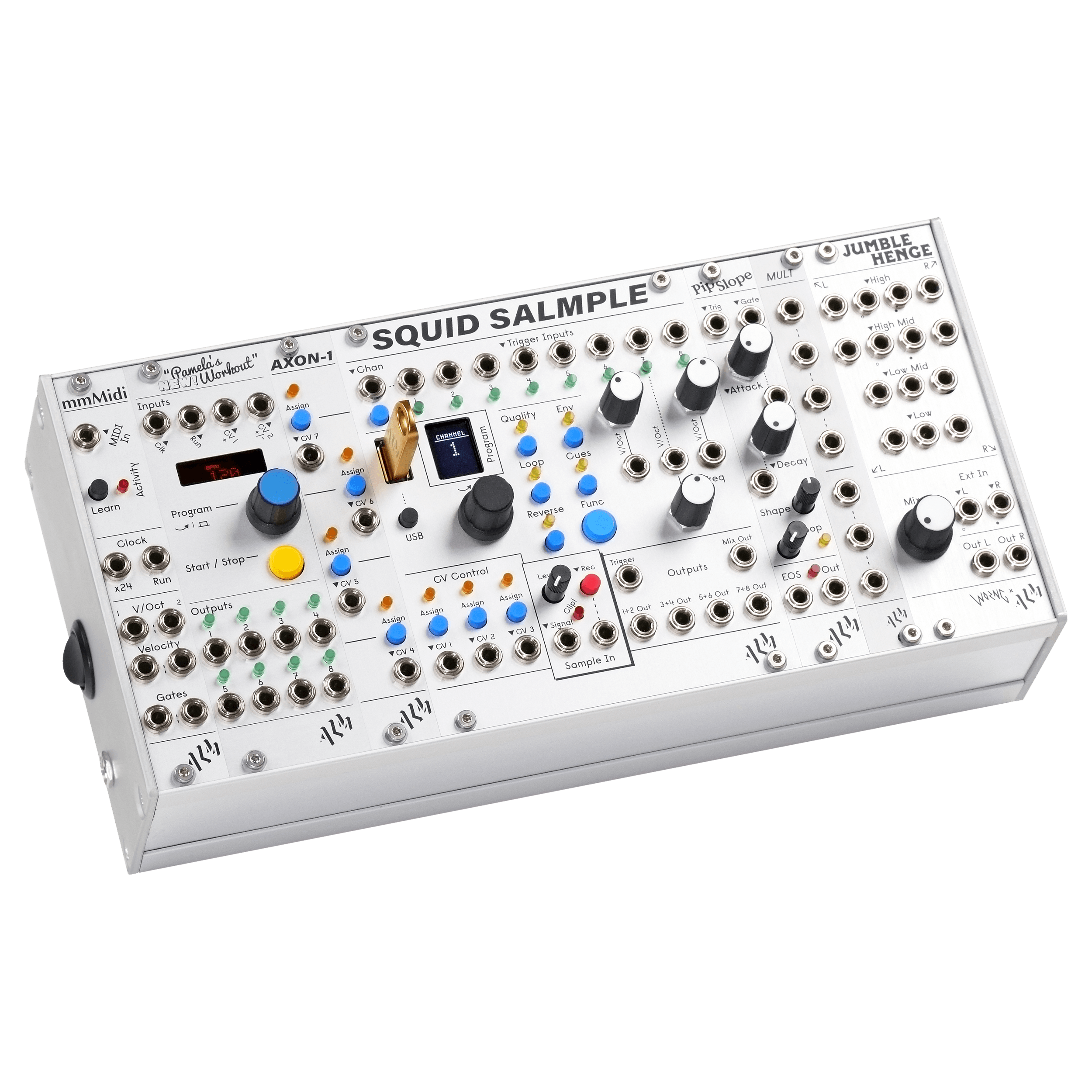

3U / 84HP
- Provides up to 1 Amp power on each -12V & +12V rail.
- Connections for up to 16 modules.
- Includes 2 Amp power ‘brick’
- External dimensions: 440x132x66 mm
- Weight: approx. 0.9kg total

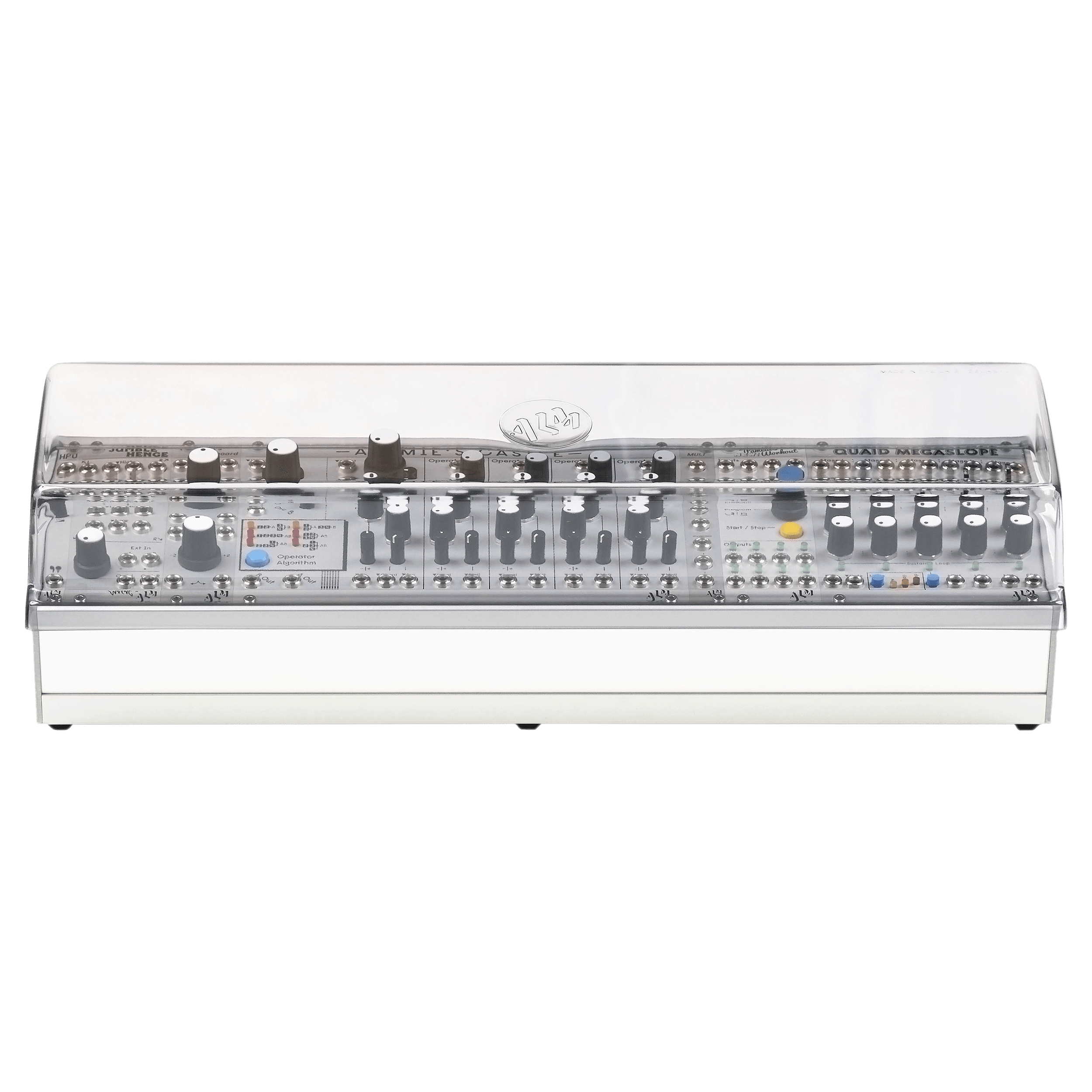

- Decksaver cover available seperately.

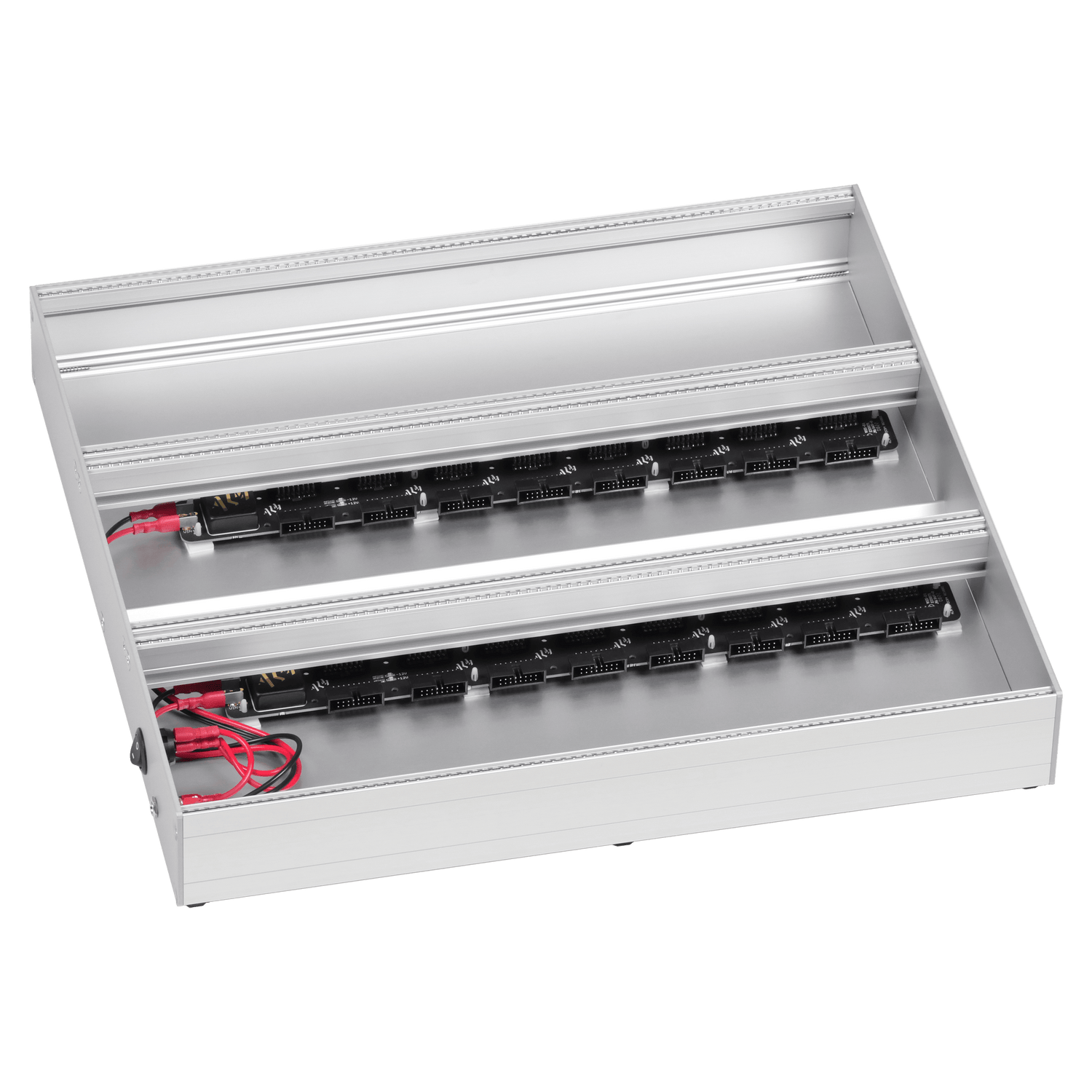

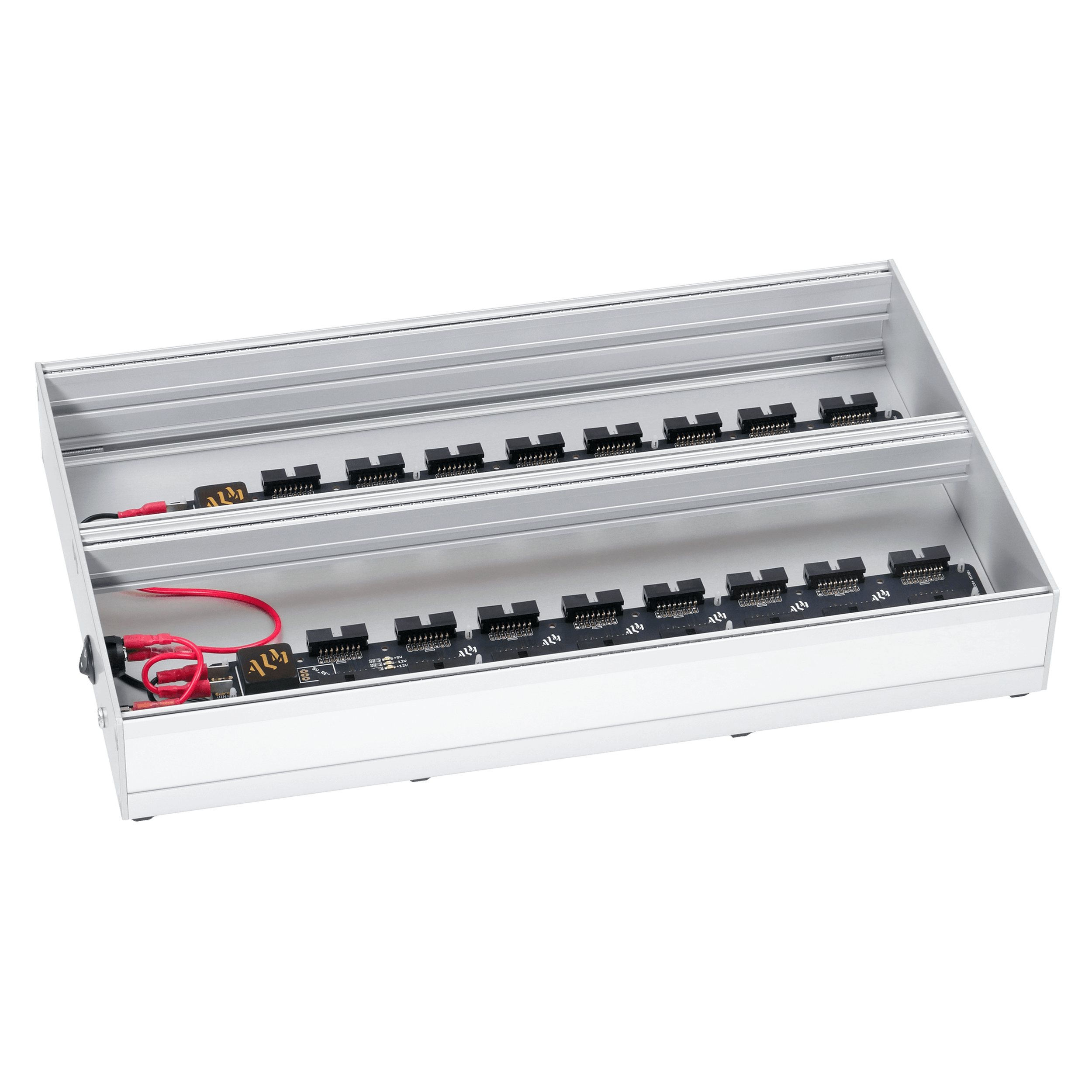

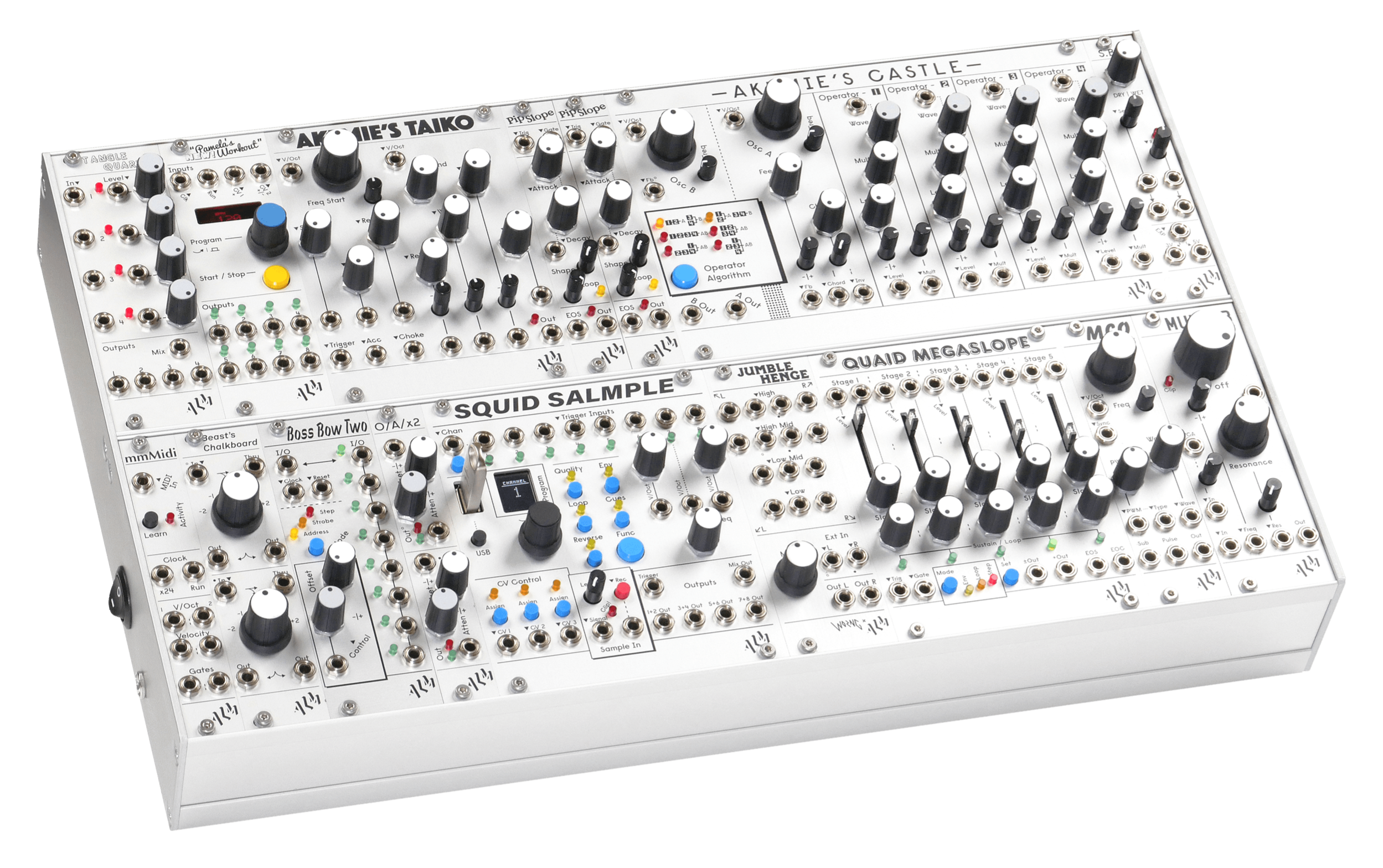

6U / 84HP
- Provides up to 2 Amp power total on each -12V & +12V rails (1 Amp total per row)
- Connections for up to 32 modules.
- Includes 5 Amp power ‘brick’
- External dimensions: 440x264x66 mm
- Weight: approx. 1.8kg total
- Decksaver cover available seperately.
9U / 84 HP
- Provides up to 2.5 Amp total power (on each -12V & +12V supply)
- Connections for up to 32 modules.
- Includes 5 Amp power ‘brick’
- External dimensions: 440x396x66 mm
- Weight: approx. 2.4kg total
- Decksaver cover available seperately.

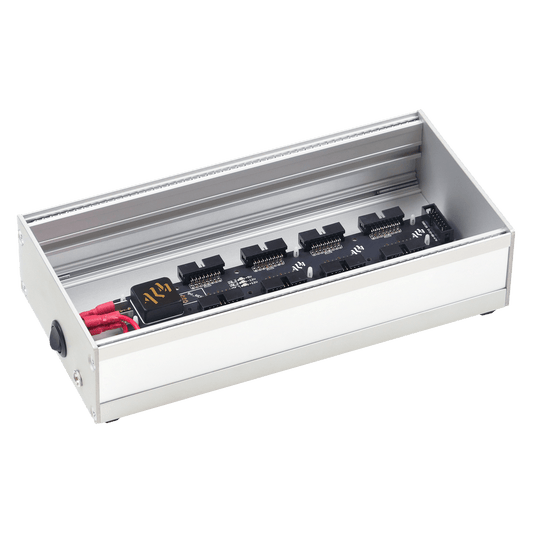

3U / 52 HP
- Provides up to 1 Amp power on each -12V & +12V rails.
- Connections for up to 9 modules.
- Includes 2 Amp power ‘brick’
- External dimensions: 277x132x66 mm
- Weight: approx. 0.7kg total
- No Decksaver currently available.

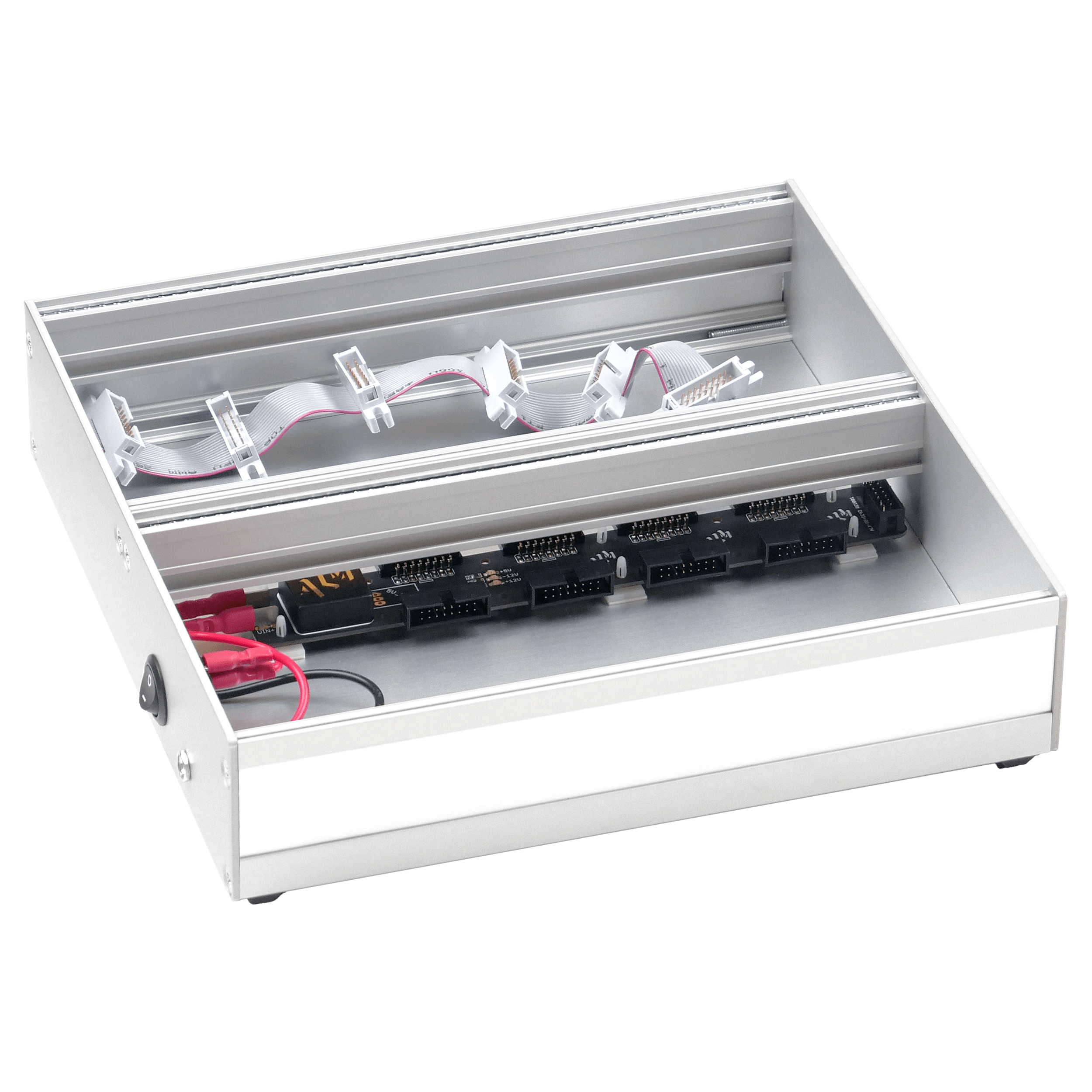

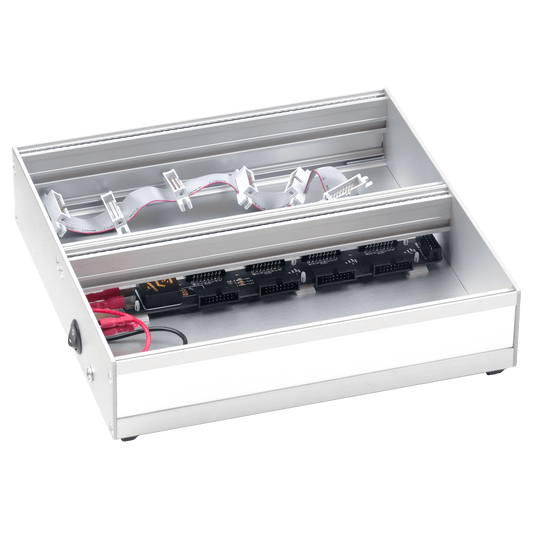

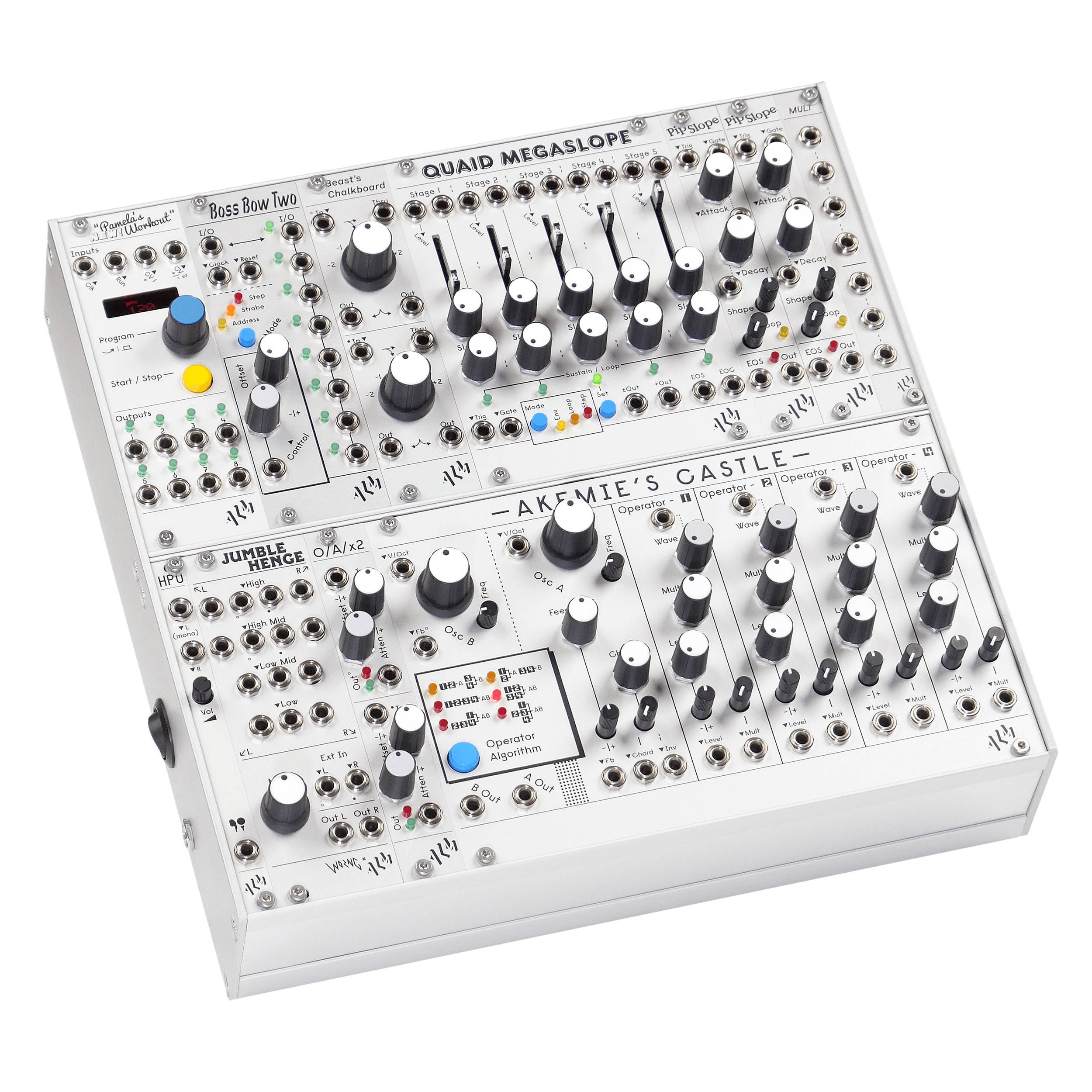

6U / 52 HP
- Provides up to 1 Amp power on each -12V & +12V rails.
- Connections for up to 9 modules on busboard, with additional ‘flying bus board’ included that adds 6 additional connectors.
- Includes 2 Amp power ‘brick’
- External dimensions: 277x264x66 mm
- Weight: approx. 1.4kg total
- Decksaver cover available seperately.
- Upper row has deeper approx 54mm internal module
depth available.
