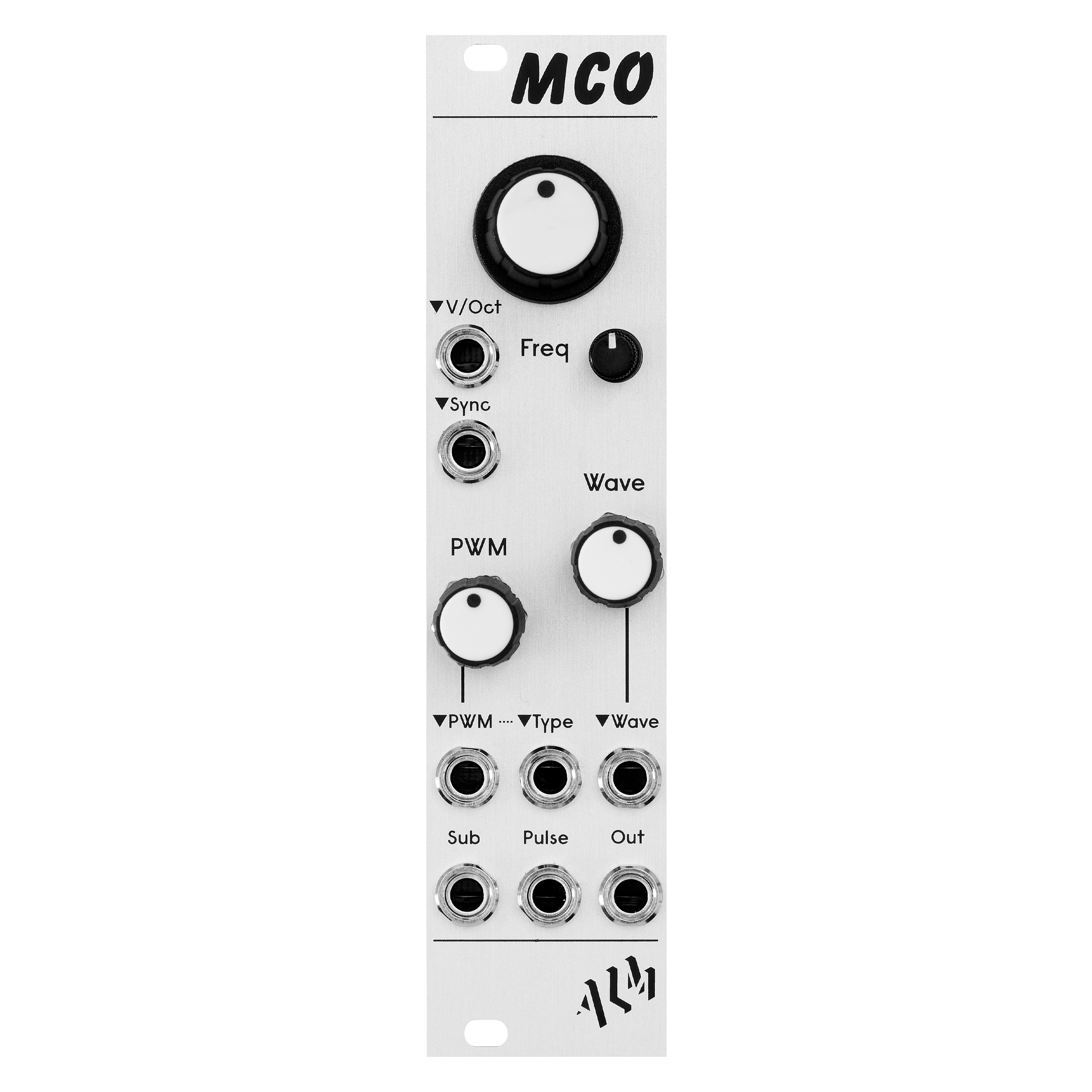

MCO (Legacy):
Compact Digital VCO
The ‘MCO’ is a compact digital oscillator. It features a main ‘morphing’ wavetable output, an additional copy of this output with overlaid variable pulse width segments (ala Alpha Juno style saw wave pwm) and a sub square wave output an octave down to the main output. The waveform and pulse segment width and be both directly and voltage controlled. The pulse segment distribution can also be voltage controlled via the ‘type’ input.
Expect an early 90s slightly crunchy digital type sound (ala Ensoniq, Kawai KX synths) rather than something striving for perfect analog emulation.
Feature List
Technical Specifications
- Supply: +12V 40mA / -12V 15mA
- Size: 6HP
- Depth: 32mm
VCV Version
Also available is a fully featured emulation of the MCO (Legacy) for ‘VCV Rack’ virtual Eurorack studio software platform. It has the exact same features as its hardware counterpart.
It can be downloaded from the VCV Rack store here or explore all ALM VCV modules.
