Pamela's PRO Workout:

Clocking Modulator

ALM034 Buy Now (In Stock)

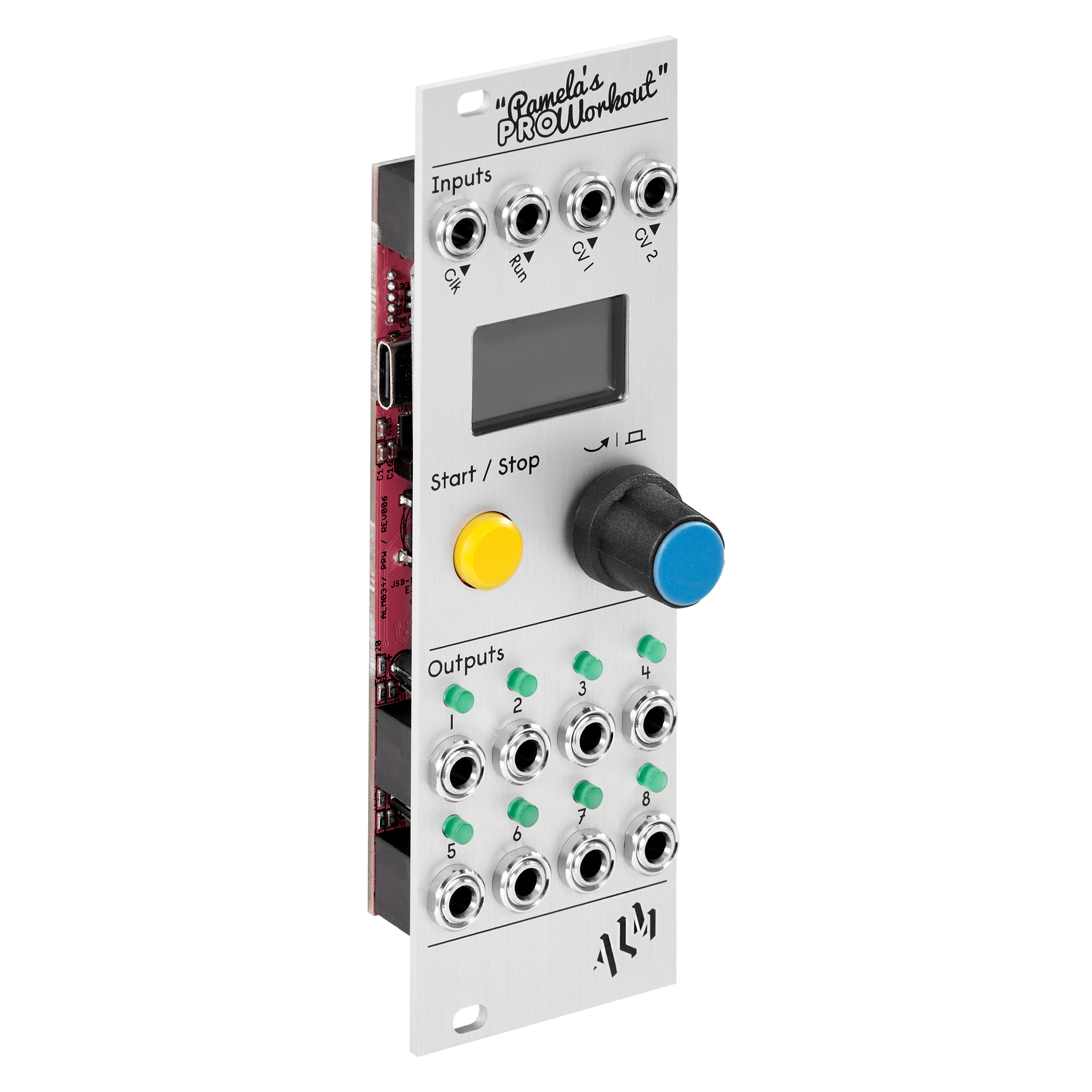

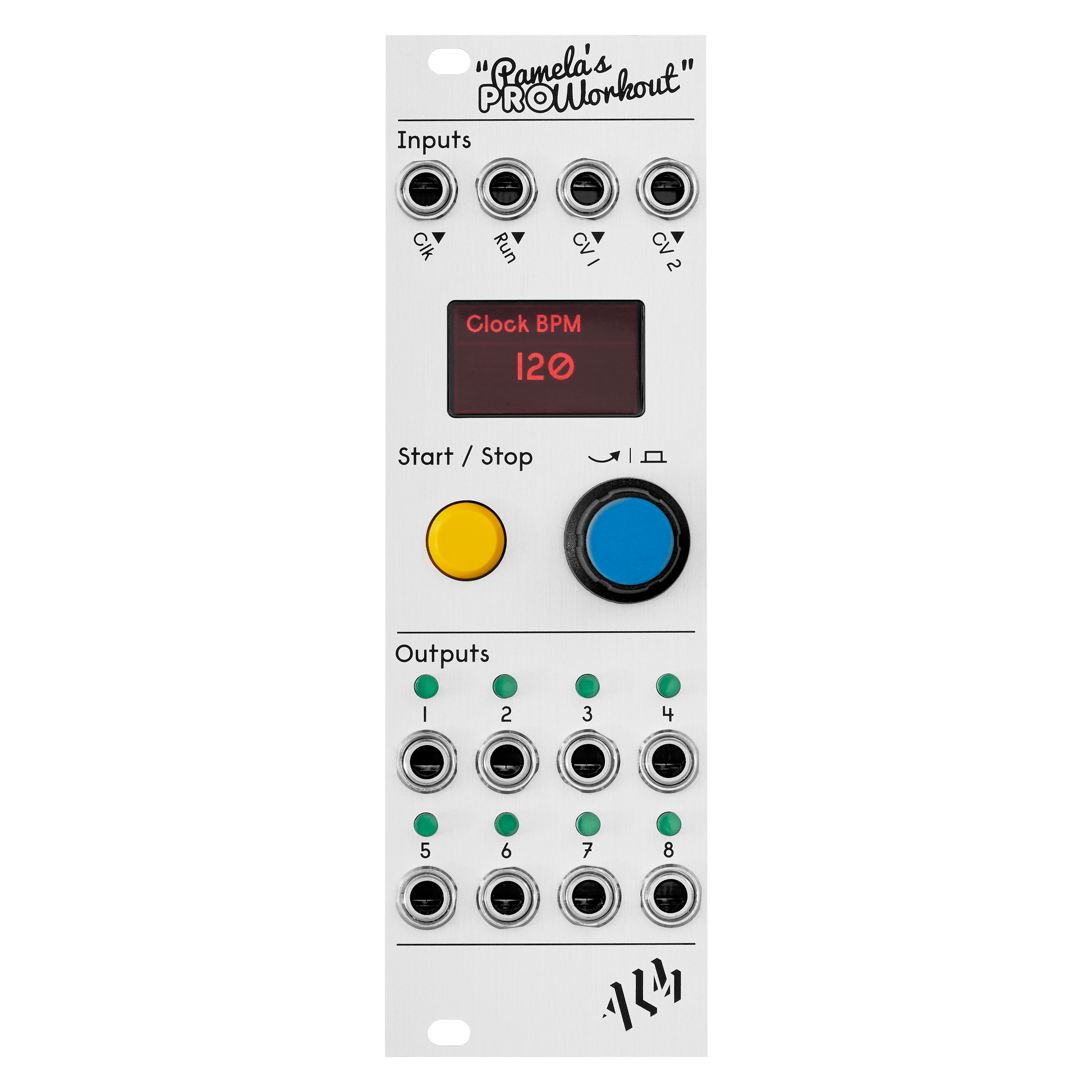

’Pamela’s PRO Workout’ is a compact programmable clocked modulation source for your Eurorack modular synthesiser system. It provides 8 highly editable outputs producing various control voltage signals, all correlated and synced to a BPM based master clock.

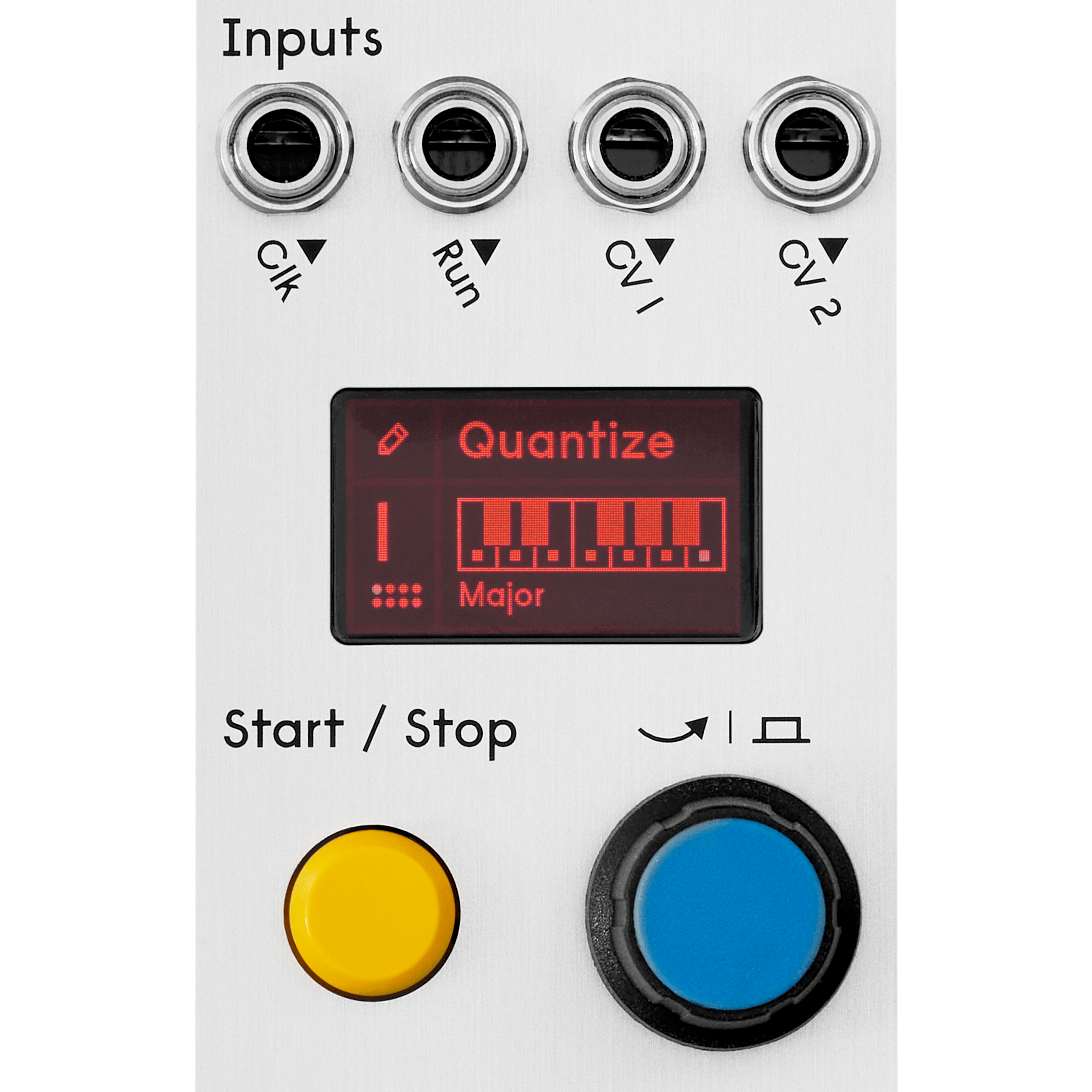

Each output can produce anything from simple clocked triggers to complex rhythmic waveforms, quanitsed melodic patterns or random chaos with many parameters controllable directly or via assigned external CV. These features, combined with a proven, easy to use and quick user interface provide almost limitless synced modulation possibilities in a tiny amount of space.

Building on the original ’Pamela’s Workout’ & ’Pamela’s NEW Workout’ this new evolved ’PRO’ Pam maintains the precursors’ form factor and intuitive workflow but improves and adds many new features with upgraded hardware, more CV inputs, a new full colour hi res display and rewritten software including much more visual indication and enhancements like more waveforms, micro grid timings and cross output modulations.

Through optional upcoming new expander modules, more CV inputs and outputs can be added with support for external non euro equipment through Midi and Din Sync outputs.

Please enjoy your next generation PRO workout!

Feature List

  • BPM based clock with tempo rates 10-303BPM.

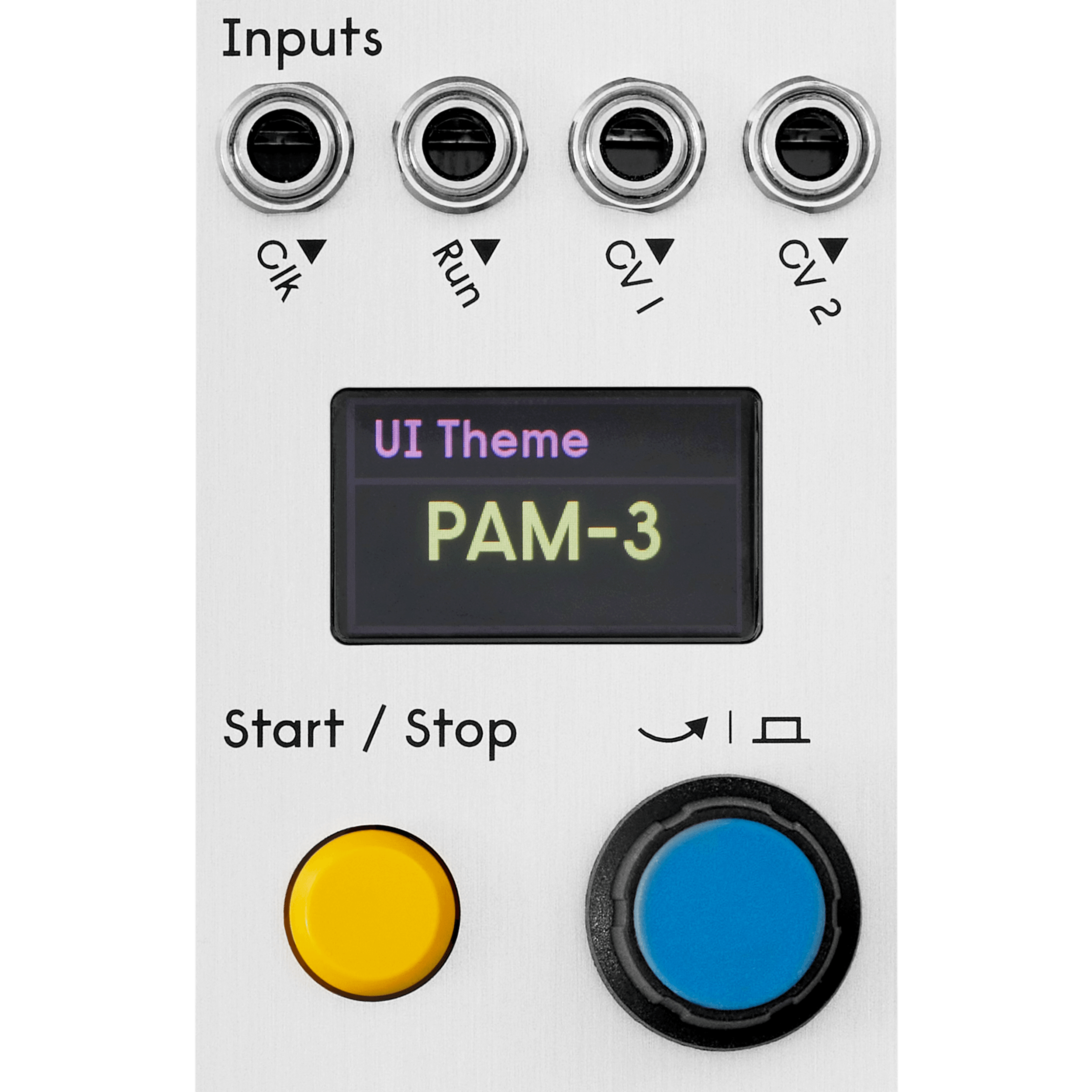

  • Realtime intuitive EASY quick theme-able user interface with full color high resolution display.
  • 8 Clocked voltage outputs each with independent adjustable;

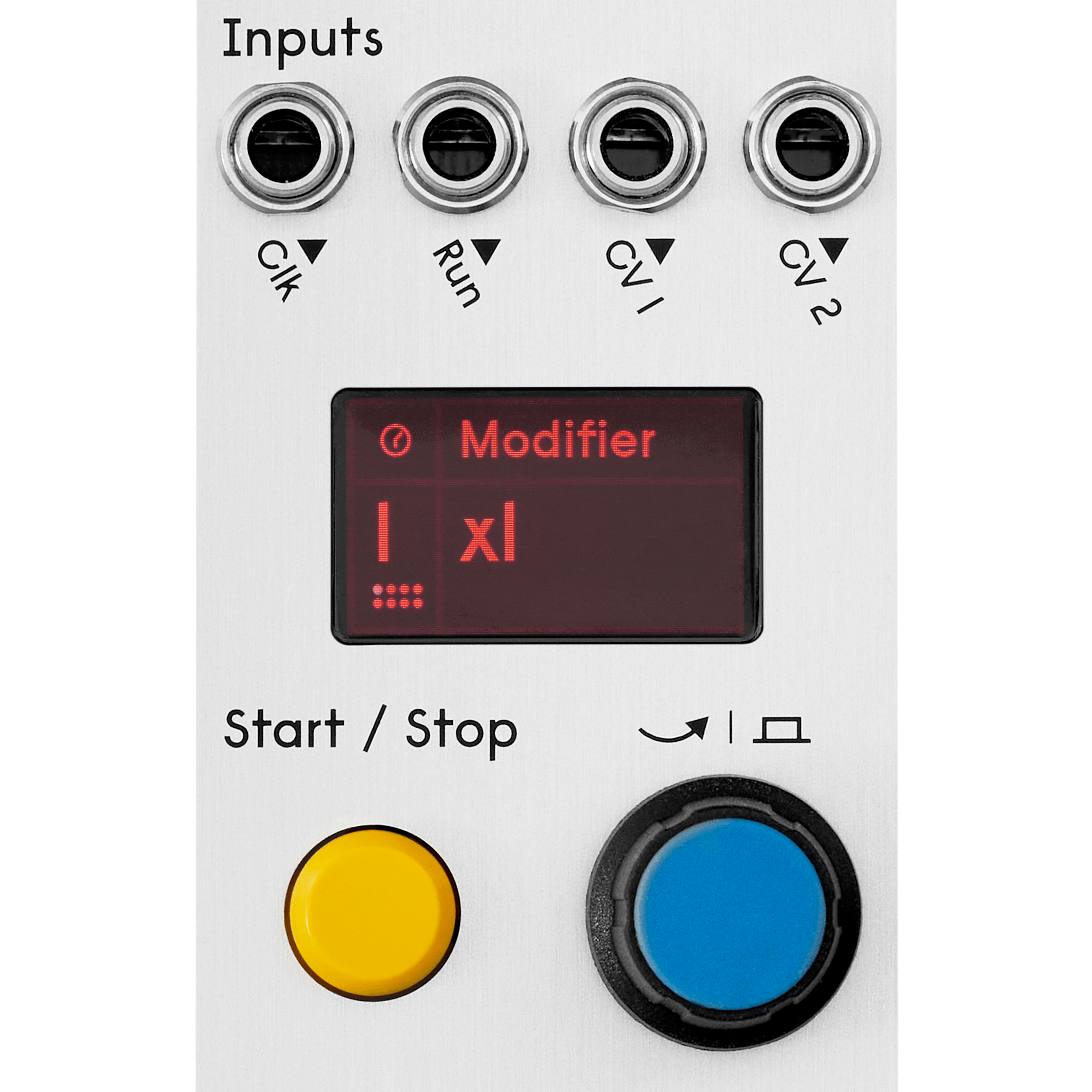

  • Clock divisors and multipliers from /16384 to x192 including various non integer factors.
  • Numerous waveform types from staples to envelopes to ratchets to random.
  • Waveform level, offset, phase, slew control.

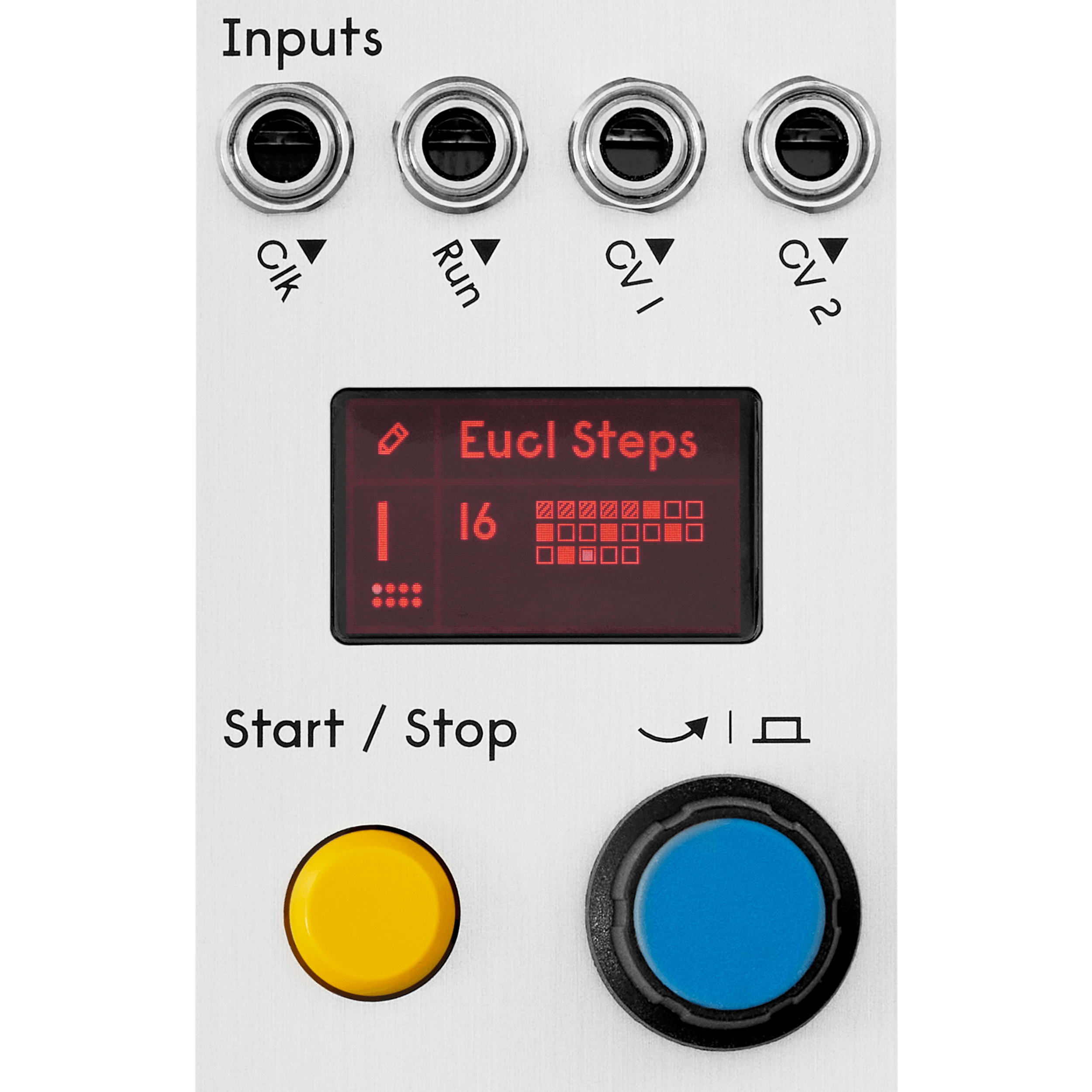

  • Extensive Euclidean,probability and beat based looping for pattern creation
  • Cross output modulation.
  • Off grid ’Flex’ microtiming for swing, human and bouncing ball type timing effects.
  • All output parameters assignable up to x4 built in CV inputs with individual offset, attenuation and monitoring.
  • Support for PPEXP1 & PPEXP2 expanders to add additional outputs.
  • Support for the ‘Axon-1’ & ‘Axon-2‘ expanders to add an additional 4 CV inputs.
  • Per output and group instant saving and loading to 7 banks (56 slots).
  • All settings remain between power cycles.
  • Voltage and direct control of clock stop/start, reset and rate.
  • USB-C for quick and easy ‘drag and drop’ firmware updates via computer.
  • Skiff friendly with reverse power protection.
  • Also available virtualised as a VCV software module.
  • Unlikely to actually improve aerobic fitness.

Technical Specifications

Size: 8HP

Power: +12v 60mA / -12v 10mA

Depth: 32mm (approx with power header)

Outputs: 0-5V buffered low impedance. 12 bit res. 3.8khz max update frequency.

Inputs: CV 0-5V / Clock, Run – rising edge 700 mV min.

Manual

The Pamela's PRO Workout PDF Manual (Version 0.35) is available for download.
Download

Updates

Firmware (Version 128) is available for download.
Download

Release Notes
    Released Version 129
  • Fix rotation lockup (again!)
    • Released Version 128
  • Add new x1.5 multiplier (Quintuplets?)
  • Add/rename quantiser scales to sync with MCO,
  • Add new 'POWER OF 2' Flex op for more ratchets etc.
  • Allow cross ops to be used for 'triggered' outputs.
  • Allow triggered outputs to have there length set in beats (new beats param)
  • Fix 100% pulse width not actually being quite 100%.
  • Manual updates.
    • Released Version 127
  • Fix BPM change on stop issue when externally synced (without RUN).
  • Fix potential rotation lockup.
  • Disable Run settings option if set to rotate and rotated!
  • Fix win 10 initialisation bug (VCV)
    • Released Version 126
  • Fix BPM change on stop issue when externally synced (without RUN).
    • Released Version 125
  • Add support for Axon 2 buttons as Cross Opt sources.
  • Improve external syncing better locking clock phase when run signal
  • Improve VCV Rack internal (and external) clocking.
  • Fix issue where double clicking a param to reset could cause a param
    • Released Version 124
  • Fix rare potential lockup where Pam refuses to start.
    • Released Version 123
  • Introduced Pam to VCV
  • Run input on reset mode now only responds to rising edge (not falling also)
  • Add new Delay option to Flex (Delay from PNW)
  • Fix CV input naming when changing Offset/Attenuation
    • Released Version 122
  • Update for factory test mode. No user visible changes. Nothing to see here..
  • Fix Axon-2 button naming.
  • Fix traiangle/trapieze waves on very low divisions
    • Released Version 121
  • Re-add now much improved output rotation feature from PNW. See RUN iput documentation in manual.
  • Fix issue with expander MIDI and Din clock dropping first pulse which could cause a potential 20ms lag on clocked devices. Fix may cause lag issues on fixed clock outs on early PPEXP1 units - if so visit busycircuits.com/support
    • Released Version 120
  • Fix bug where certain CV controlled params would never quite hit 100%
  • Allow for CV control of Euclidean trigger count to go to zero
  • Add new simpler boolean style logic cross ops
  • Reorder Cross Ops
  • Better loops display and new shift parameter
  • Save the current BPM with bank
  • Allow for bank loads to be triggered bu Clk/Run inputs
  • Add a new 'triggered' modifer type. Allows for outputs to be triggered (like envelopes) from a CV input.
    • Released Version 119
  • Add support for CV attenuversion.
  • Add Min/Max new cross ops
  • Add new 'Trek' theme.
  • Fix issue with waveform width not behaving at low divide factors.
  • Initial Axon-2 (tba.) support.
    • Released Version 118
  • Theme rendering optisation.
  • production related improvement.
    • Released Version 117
  • Support missing external x8 PPQN clock
  • If Run is assigned to CV then autostart in present of ext clock (like Run as Reset).
  • Fix potential issue with probability that could cause unexpected skips.
    • Released Version 116
  • Add fullscreen 'mode' to scope.
  • Fix issue when writing to very last bank slot could cause storage corruption.
  • Make sure loop naps get rest correctly
  • Make external clocked BPM display less jittery.
  • Fix Swing losing 'sync' when output modifier changed
    • Released Version 115
  • Fix bug where BPM was not getting saved correctly
    • Released Version 114
  • Fix bug where inactive theme color was not rendering correctly.
    • Released Version 113
  • boot fixxes
    • Released Version 111

VCV Version

Also available is a fully featured emulation of the Pamela's PRO Workout for ‘VCV Rack’ virtual Eurorack studio software platform. It has the exact same features as its hardware counterpart.

It can be downloaded from the VCV Rack store here or explore all ALM VCV modules.

Overview and Playlist

Pairs Well With →

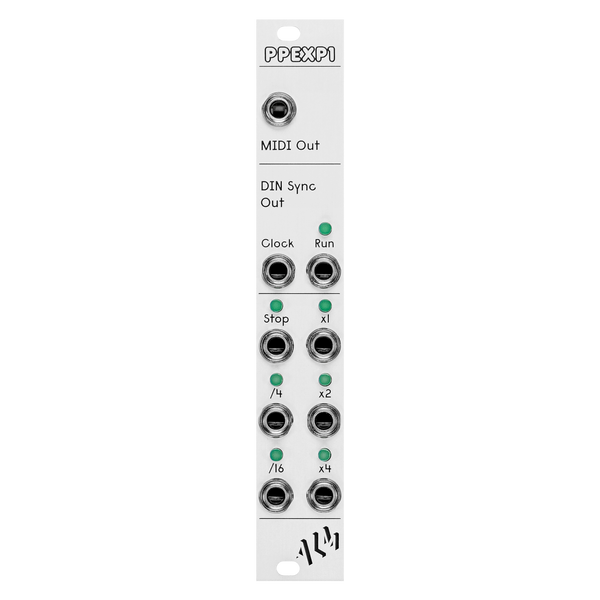

PPEXP1
