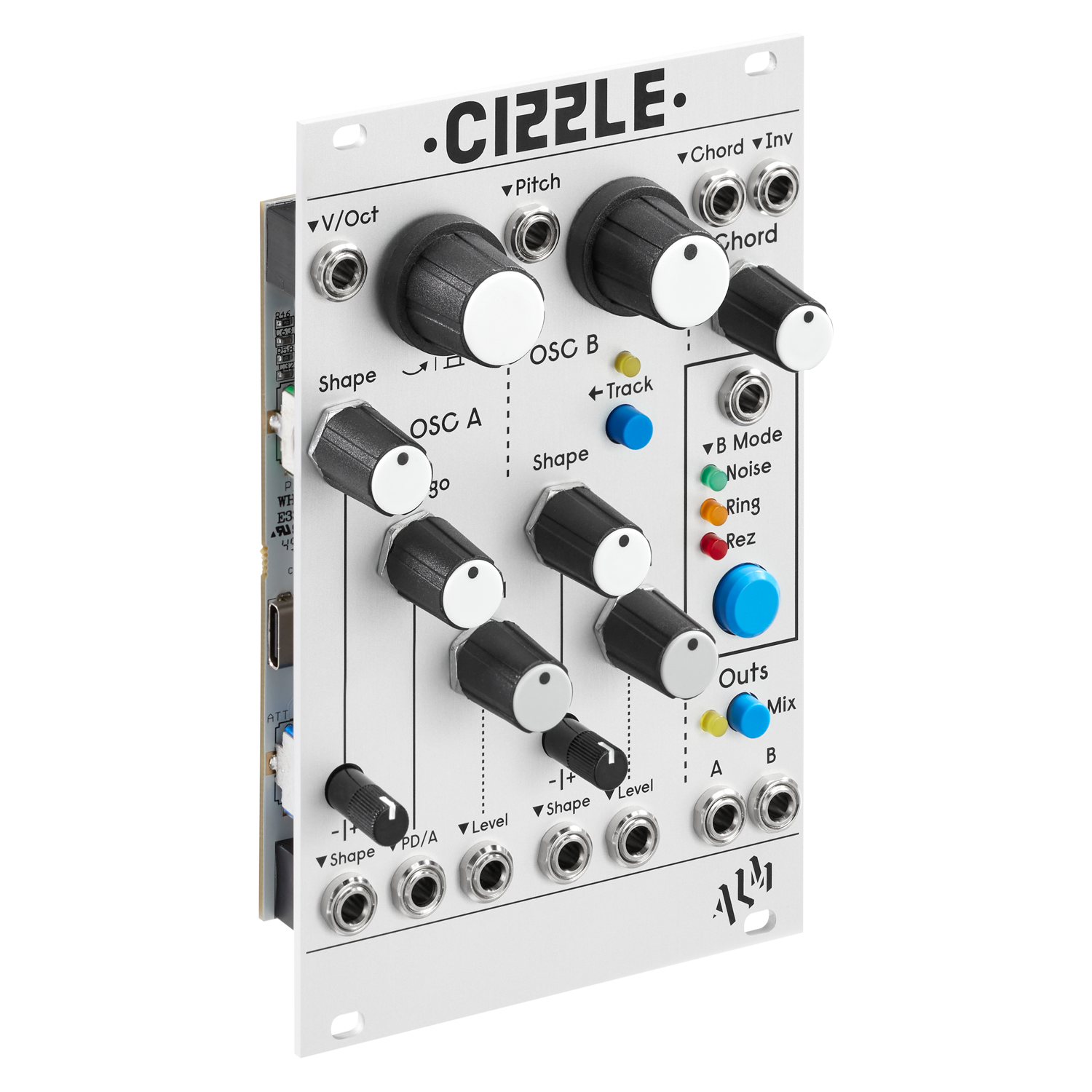

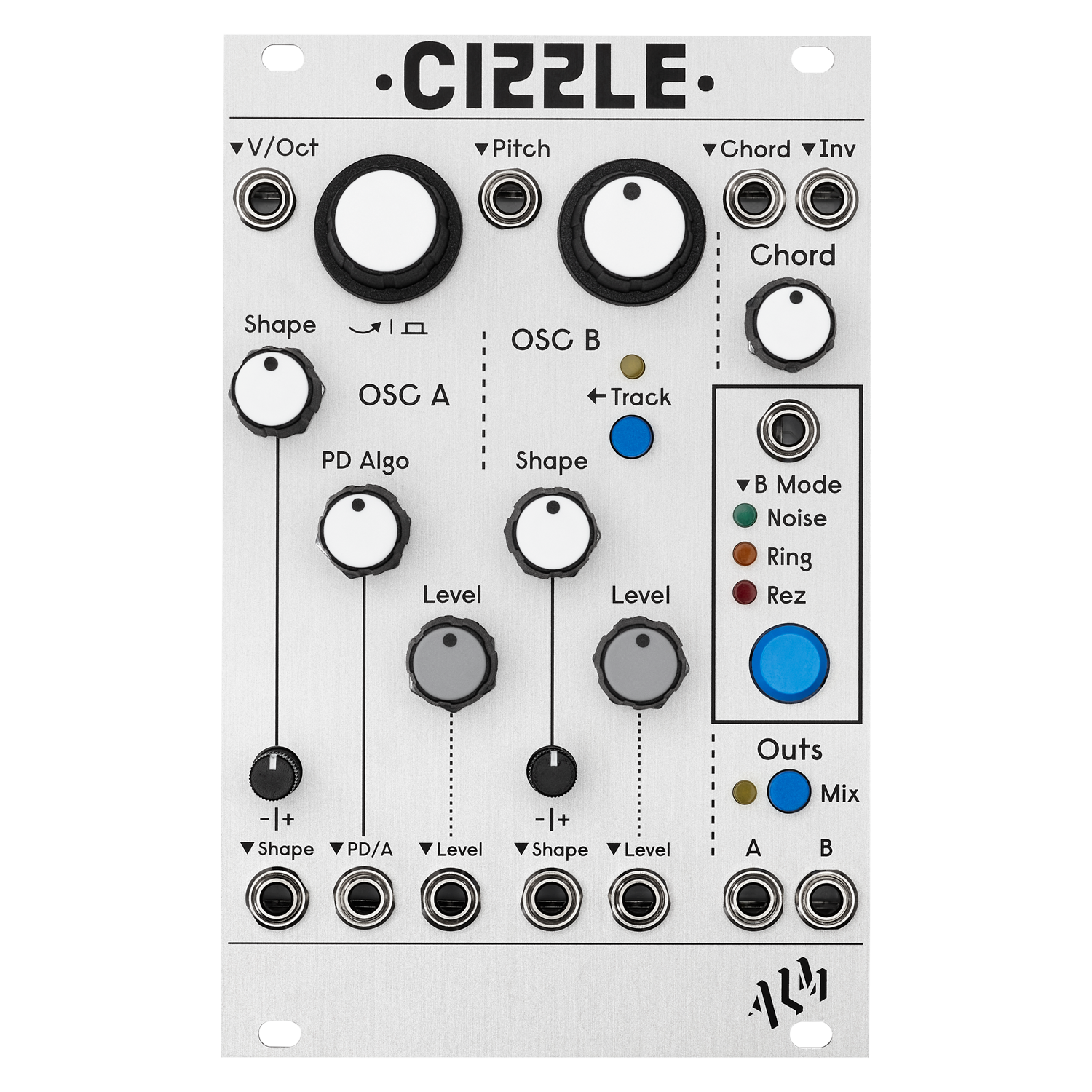

The ‘CIZZLE’ is a dual digital ‘phase distortion’ VCO inspired by the classic Casio ‘CZ’ series synthesizers. It brings the specifics of ‘CZ’ style phase distortion (PD) synthesis into Eurorack with the inclusion of primary and secondary oscillator layering and detuning (with up to 8 voice chord generation), extended morphable PD wave generation algorithms, unique resonance wave generation, plus specific ‘end of chain’ ring modulation and noise modes that are key to the CZ sound.
The voices also feature built in VCAs and various modulation controls and inputs, a cv-able chord mode, tracking ability, triggered mode switching and can be output independently or mixed with stereo widening.
The ‘CIZZLE’ finally brings characteristic CZ style synthesis to Eurorack with a rich palette of sounds from mellow ambient tones, 90s Detroit Techno inspired chords, Reese style basses, and synth tones with unique faux resonance squelch.
Feature List
Ideal For
Technical Specifications
- Supply: +12V 65mA / -12V 25mA
- Size: 16HP
- Depth: 32mm
Updates
Release Notes
- Released Version v103
- Fixing encoder double click so that it sets the internal frequency to middle C, not taking into account any v/oct input.
- Change chords to match new MCO-MKII list. Allows support from NOH Modular's Pianist module.
- Adds Diminished, Minor 9 and Major 9 chords and removes Major 4.
- Adding Level offset to calibration.
- More headroom on calibration. Released Version v102
- Fixed bug: OSC B CV wrapping in track mode.
- Reduced slew on chord and inversion for instantanious chord changes. Released Version v101
- Adding extra step to calibration so that OSC B does full 24. (Will need recalibrating). Released Version v100
- Initial release.
VCV Version
It can be downloaded from the VCV Rack store here or explore all ALM VCV modules.
