Pamela's Workout:

Master Clock Source

ALM001 Discontinued

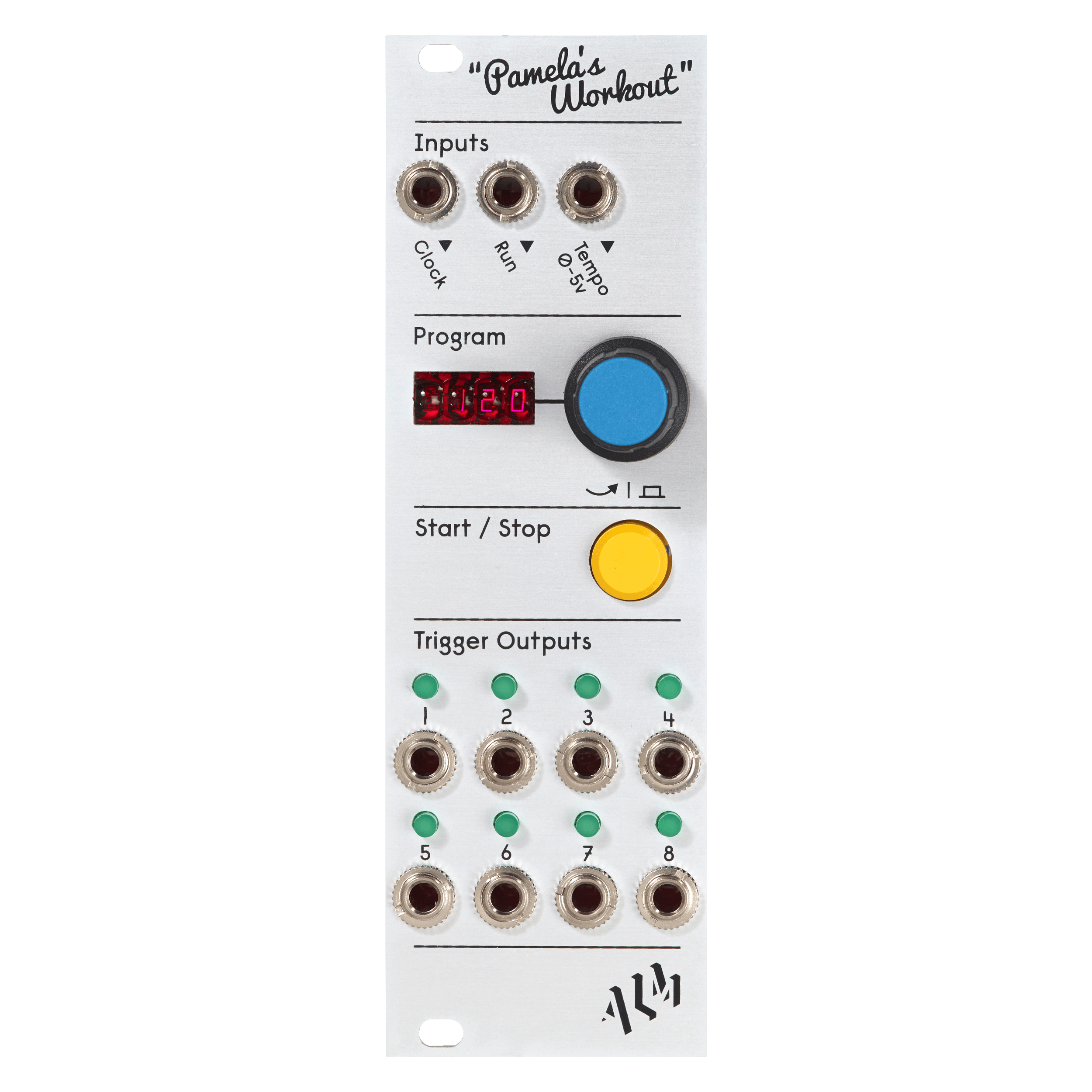

‘Pamela’s Workout’ is a compact programmable clock source for your eurorack modular synthesizer system.

It provides 8 highly editable trigger outputs, all correlated to a direct and voltage controlled BPM based clock.

Pamela's workout is now discontinued and has been succeeded by Pamela's PRO Workout

Feature List

  • BPM based clock with rates 25-300BPM.
  • 8 clocked independent adjustable trigger outputs each with 32 Clock divisors and multipliers /512 to *48 including Triplets, Evens, Odds etc.
  • Also per trigger Pulse width, random skips and delay and delay division (for complex shuffle)
  • Voltage and direct control of clock stop/start and reset.
  • Voltage control of clock rate.
  • Sync to an external clock input at 24 to 1 PQN.
  • Simple realtime user interface with ‘NOS’ vintage LED display.
  • Non-volatile – settings remembered between power cycles across 5 save banks.
  • Easy firmware upgrades with no special hardware needed just an audio out.
  • Provides DIN Sync input & output with simple adaptor.
  • Skiff friendly
  • Designed and built in England.

Technical Specifications

  • Supply: +12V 80mA / -12V 80mA
  • Size: 8HP
  • Depth: 22mm

Manual

The Pamela's Workout PDF Manual is available for download.
Download

Updates

Firmware (Version 108) is available for download.
Download
