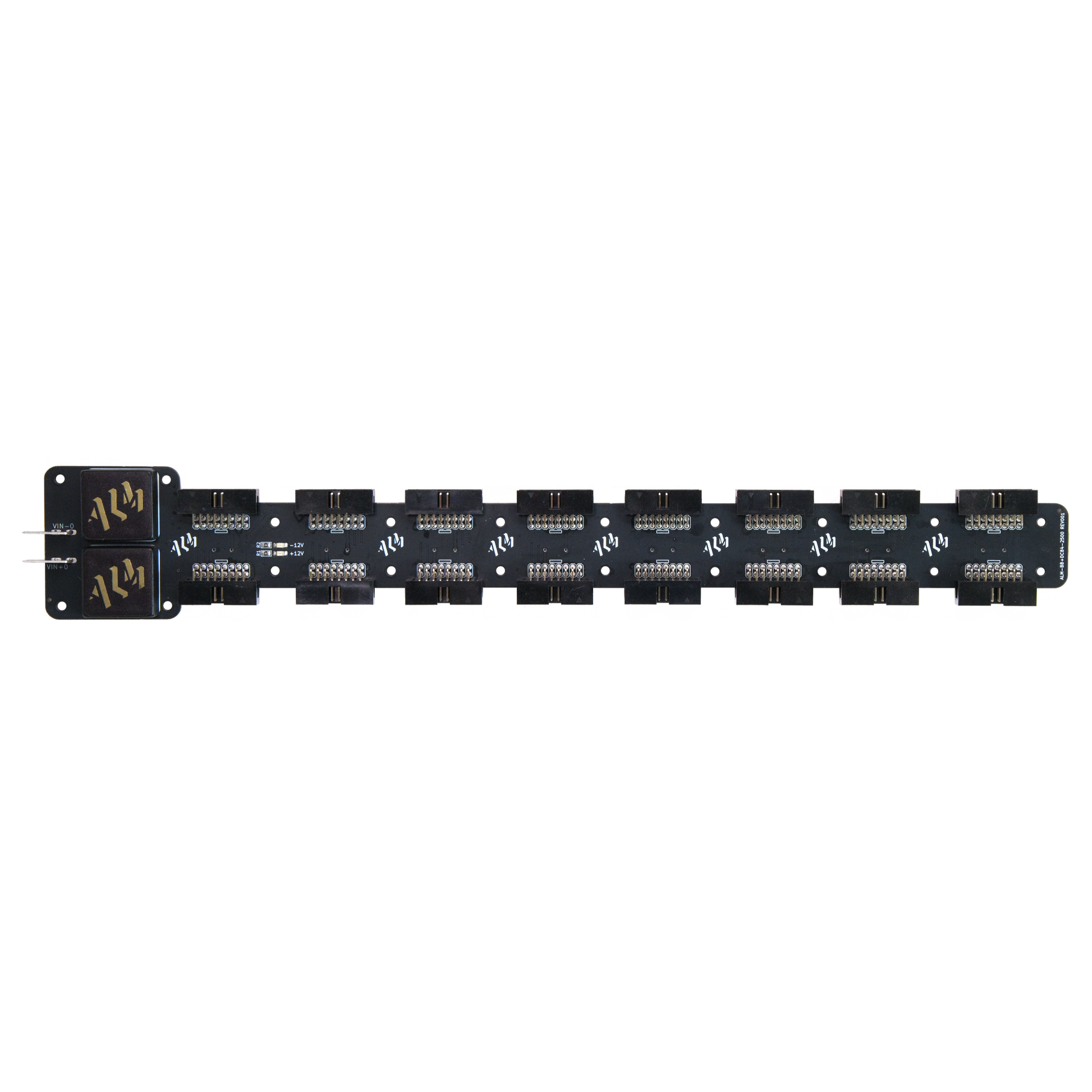

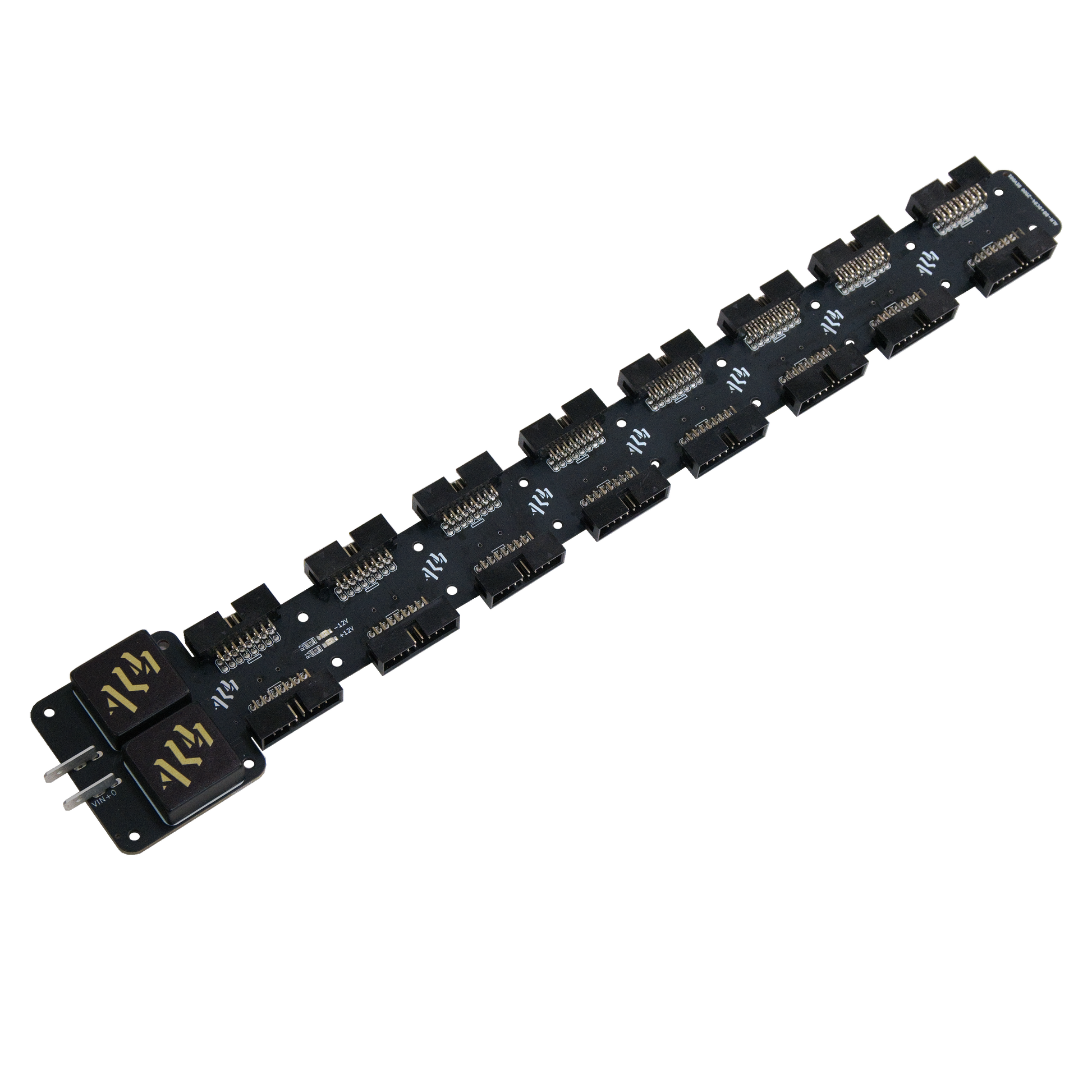

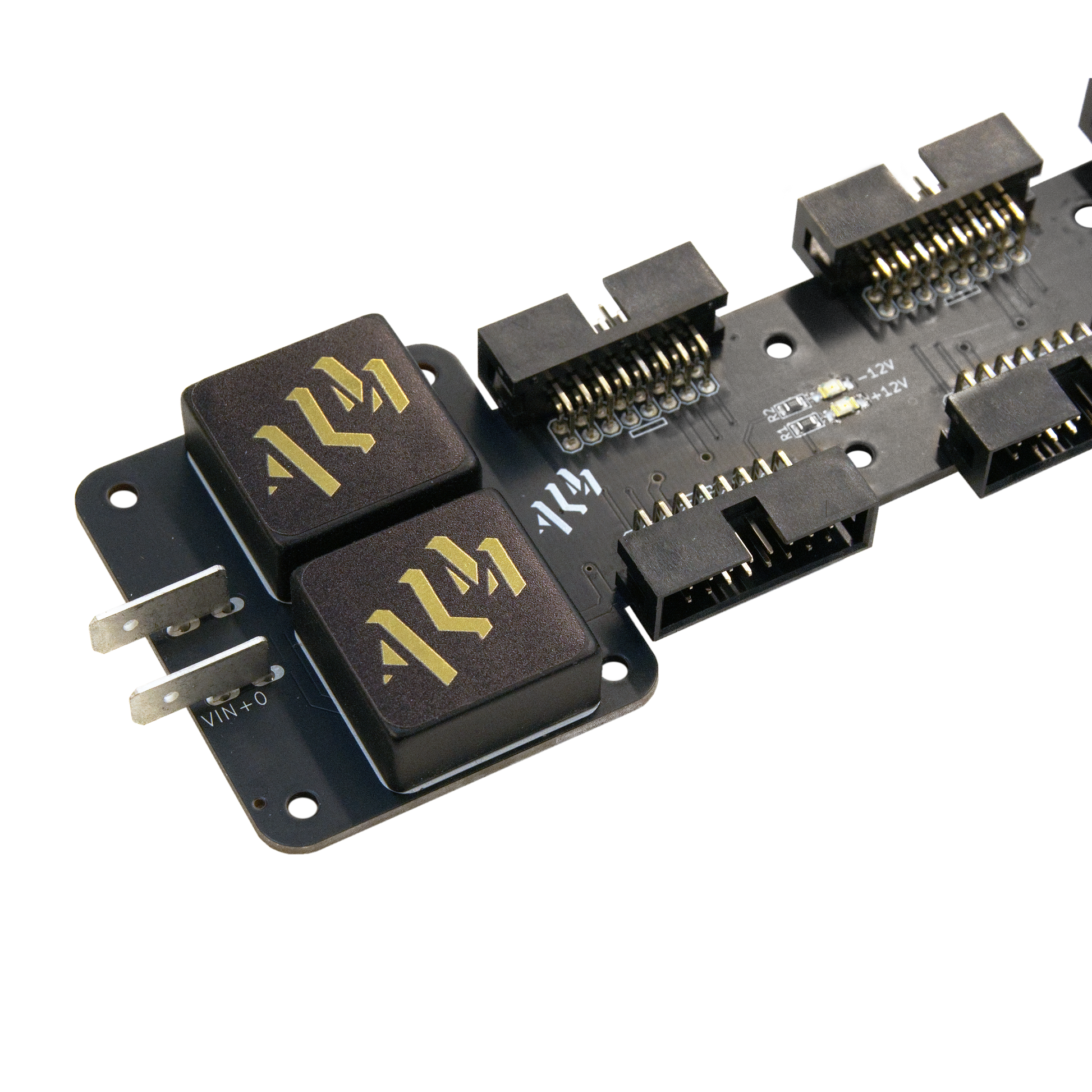

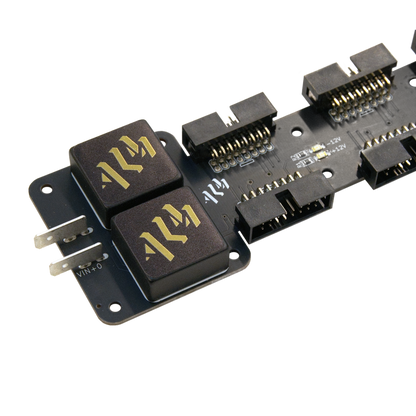

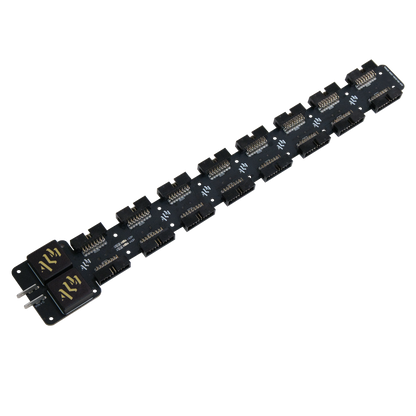

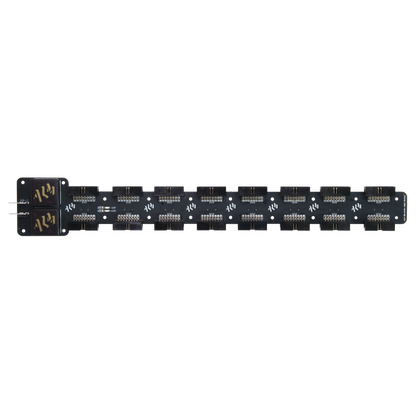

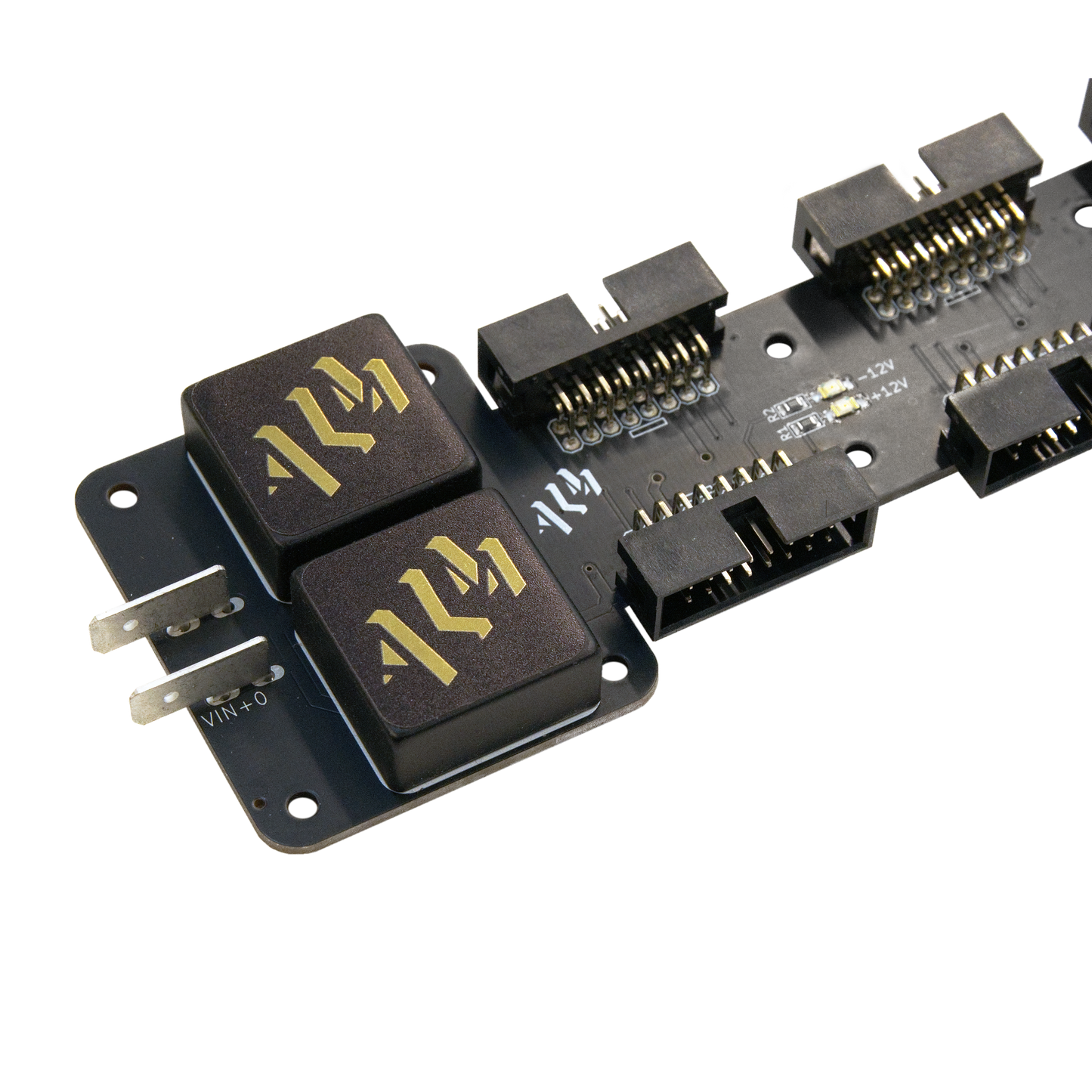

84HP HI-Power Bus Board

This high power bus board is rated to supply more than double (2.2 Amps per rail) the power of our standard 84HP bus boards used in ALM cases.

Use to upgrade an existing ALM case if your modules require higher power. This is usually only the case if you use a large number of high power digital modules.

• Provides up to 2.2 Amps on each -12V and +12V rail from a +12V DC supply (5+ Amps recommended).
• 16 keyed power connectors.

• Low noise. Overload & Short Circuit protection.

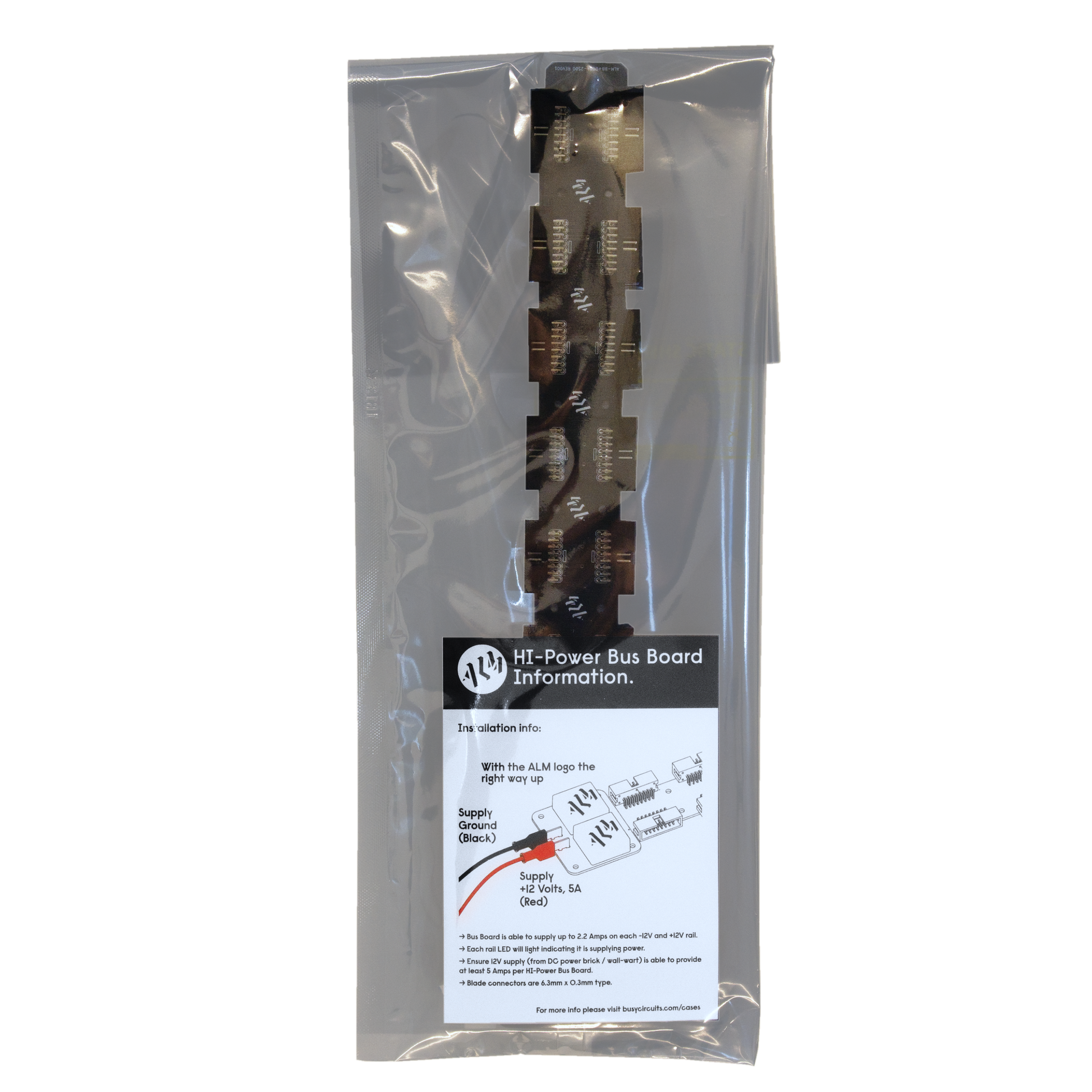

• Supplied with adhesive mounting pads and install instructions.

• Intended for 84HP wide cases. 380mm long x 60mm width.

You may need a higher rated power brick - we strongly recommend 5 Amps per high power bus board.
