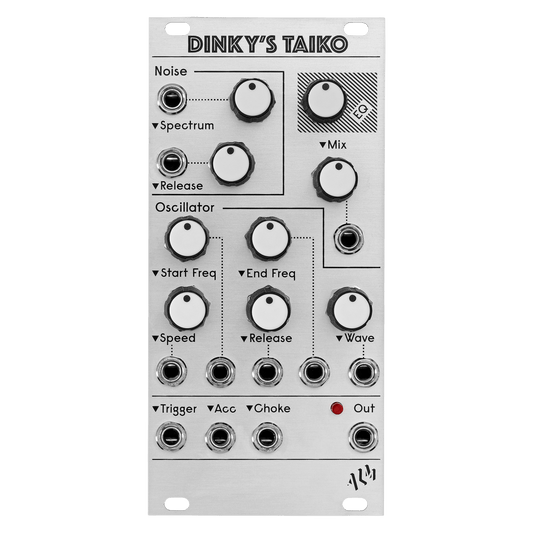

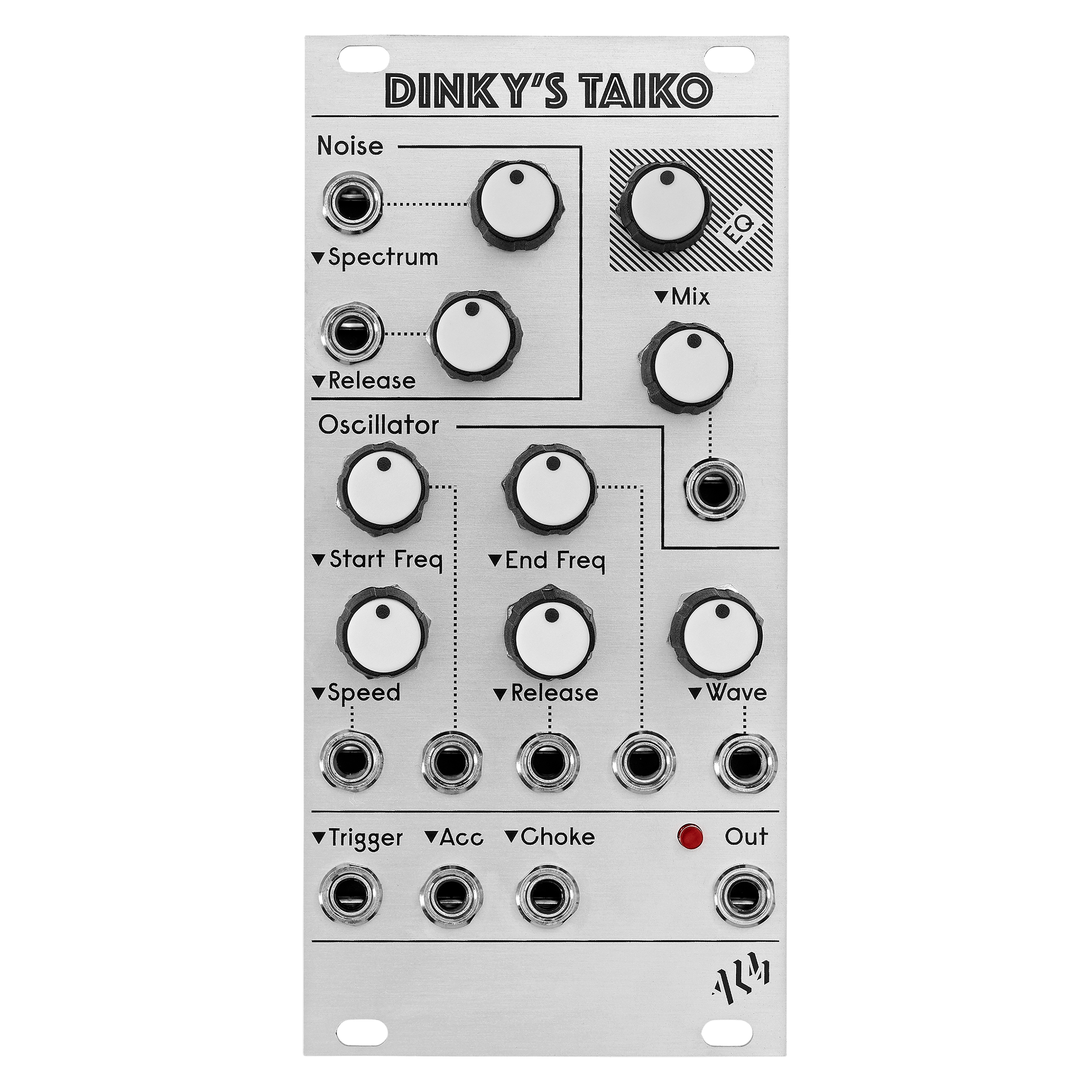

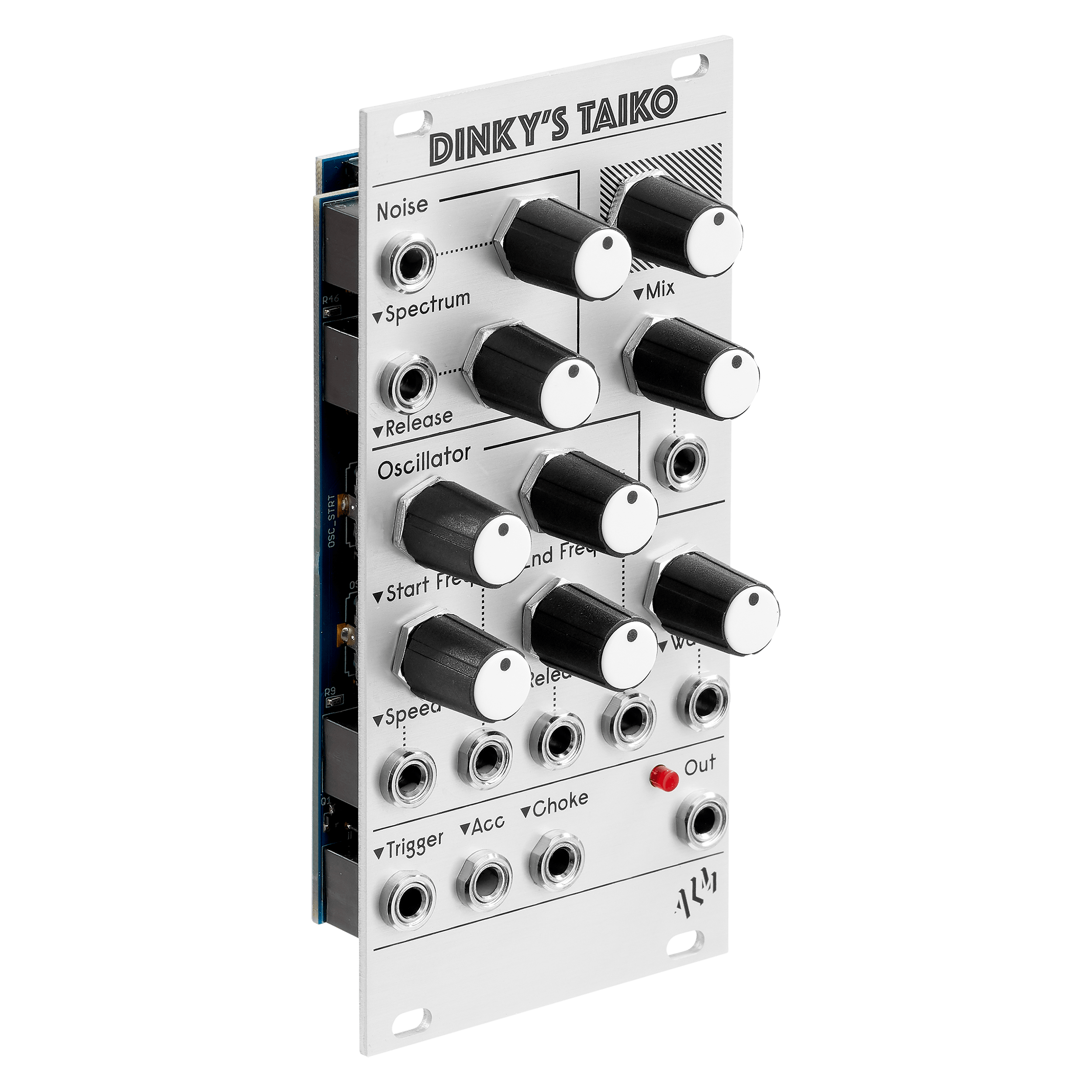

ALM005 / Dinky's Taiko

Dinky’s Taiko’ is a 12 bit digital drum voice with full voltage control and an analog EQ output path.

The drum voice consists of 3 parts; a digital noise source with controllable frequency and release time, a wavetable oscillator with start and end frequency settings together with a variable rate (and release time, and finally a mix and tone control for the audio output. All settings, bar the tone control, are both direct and voltage controllable.

The drum voice includes a trigger input as well as accent and choke trigger inputs to add further expressive and rhythmic control.


Features

  • Wide varied 12 Bit digital drum sound source through fully analog EQ.
  • Extremely wide pallet of sounds with lots of modulation possibilities.
  • Digital noise generator combined with variable wavetable (24 waveforms) oscillator through an EQ and mix output.
  • Trigger, accent and choke trigger inputs.
  • Reverse polarity protection.
  • Skiff friendly.
  • Designed and Made in the UK.

TECHNICAL SPECS

Supply: +/-12V (Reverse voltage protection)
Current Draw: ~80ma
Size: 12 HP
Depth: 32mm (including power header)

MANUAL

The latest PDF version of the manual is available for download here.

Dinky’s Taiko works well with Pamela’s Workout, O/A/x2 and Tangle Quartet
