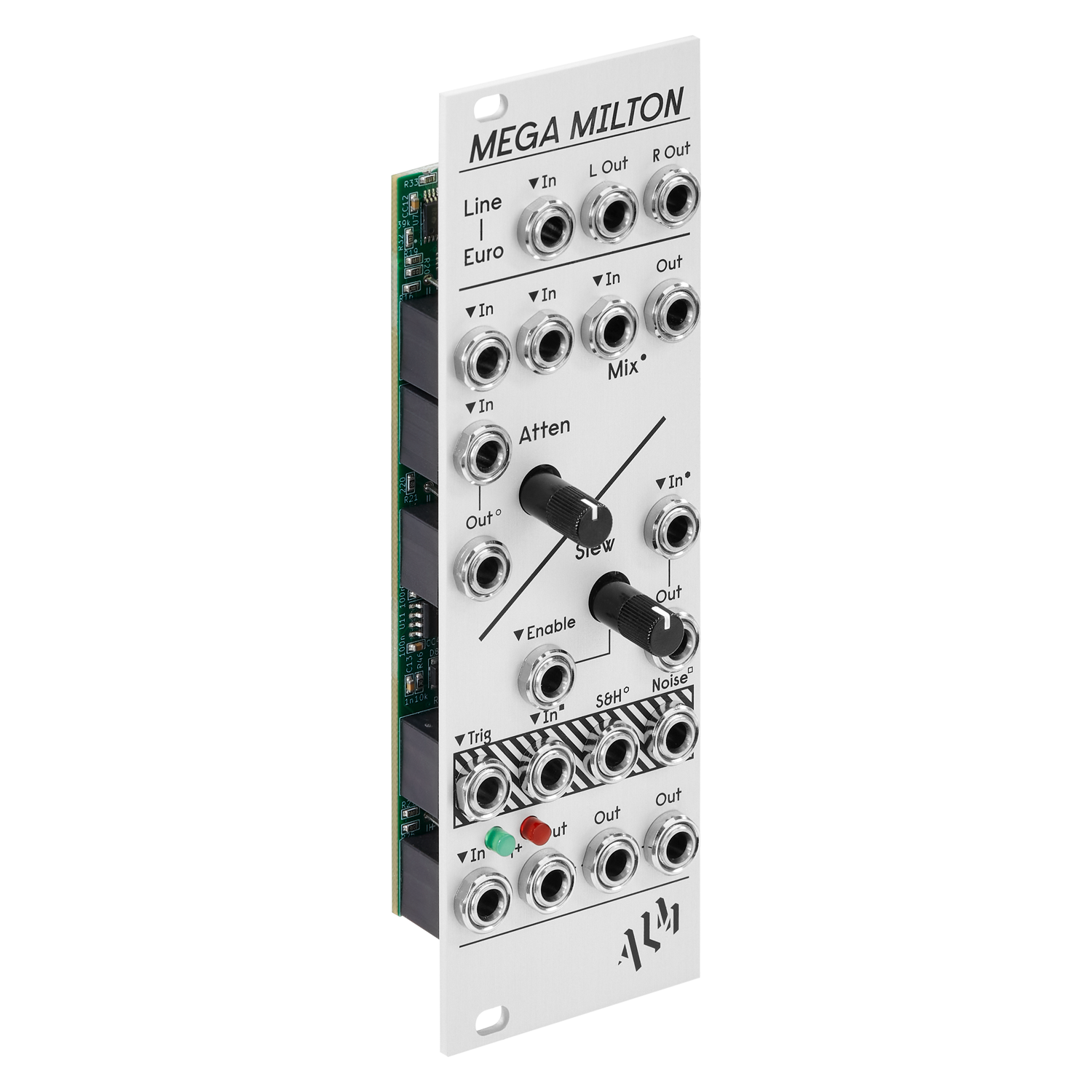

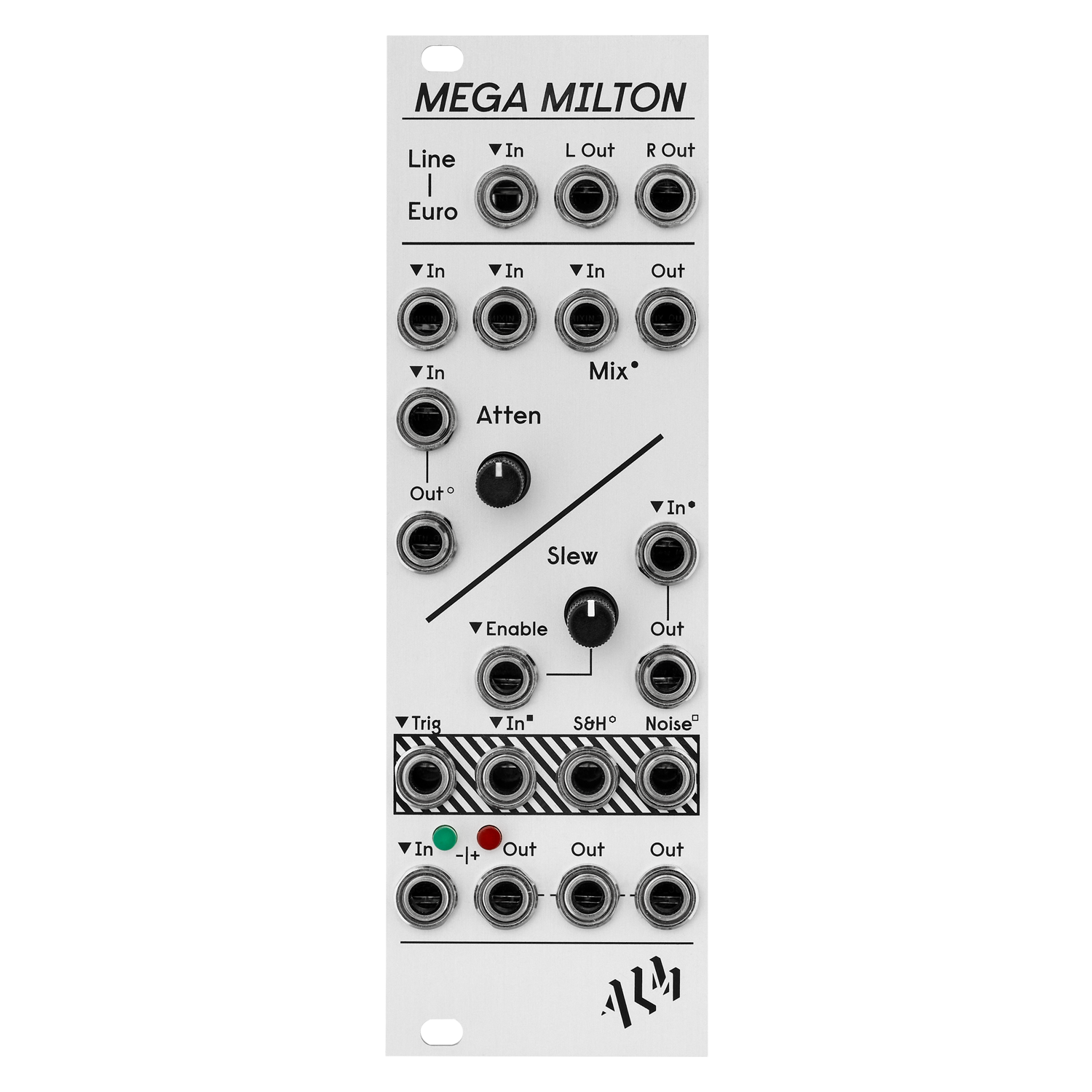

MEGA MILTON:
Compact Utilities

ALM037

The ‘MEGA MILTON’ is a smorgasbord of handy all analog utilities in just 8HP that will greatly extend the functionality of your Eurorack system.

It includes a stereo line input converter for incorporating line level external sources into a Eurorack system, a fixed 4 input mixer with breakout attenuator for combining signals, a gated slew limiter for adding slides to sequences, a sample and hold with analog white noise with a myriad of uses such as generative melodies or producing percussive textures and finally a buffered mult for droop free signal distribution with handy LEDs to monitor.

All sections are normalised to help with typical use cases such as generating random CV from the sample & hold section, a smooth random source from the slew output and breaking out a standalone attenuator from the fourth mixer input.

The ‘MEGA MILTON’ provides essential classic synthesizer building blocks for patching in any Eurorack system.

Features

  • Stereo line in to Eurorack level converter & mono splitter.
  • Four input summing mixer with break out attenuator.
  • Slew limiter circuit with gate input for switching on and off.
  • High quality sample & hold circuit with low ‘droop rate’.
  • Analog White noise generator.
  • Buffered multiple with LED polarity indicators.
  • Normalisation between sections for simplified patching.
  • Skiff friendly with reverse power protection.
  • 2 Year Warranty.
  • Made in England.

Watch & Learn

Introducing MEGA MILTON
MEGA MILTON MEGA TIPS

Ideal for:

  • Incorporating stereo external sources easily into your Eurorack system.
  • Signal attenuation and basic mixing in a small space.
  • Building percussion sounds from an analog noise source.
  • Producing clocked random to add interest and variation to patterns and sounds.
  • Adding gated 303 style slides to patterns.
  • Creating and manipulating patterns with Sample and Hold.
  • Buffering and monitoring voltage across multiple VCOs or other destinations with no drop.

Technical Specifications

Supply: +12V 70mA / -12V 70mA

Size: 8HP

Depth: 32mm

MEGA MILTON pairs well with Pamela’s PRO Workout, Pip Slope and TAZM-O.
